Запчасти Case 621E (05-09) - STEERING - HYDRAULICS - CYLINDER (05) - STEERING

1

87452362

STEERING CYLINDER

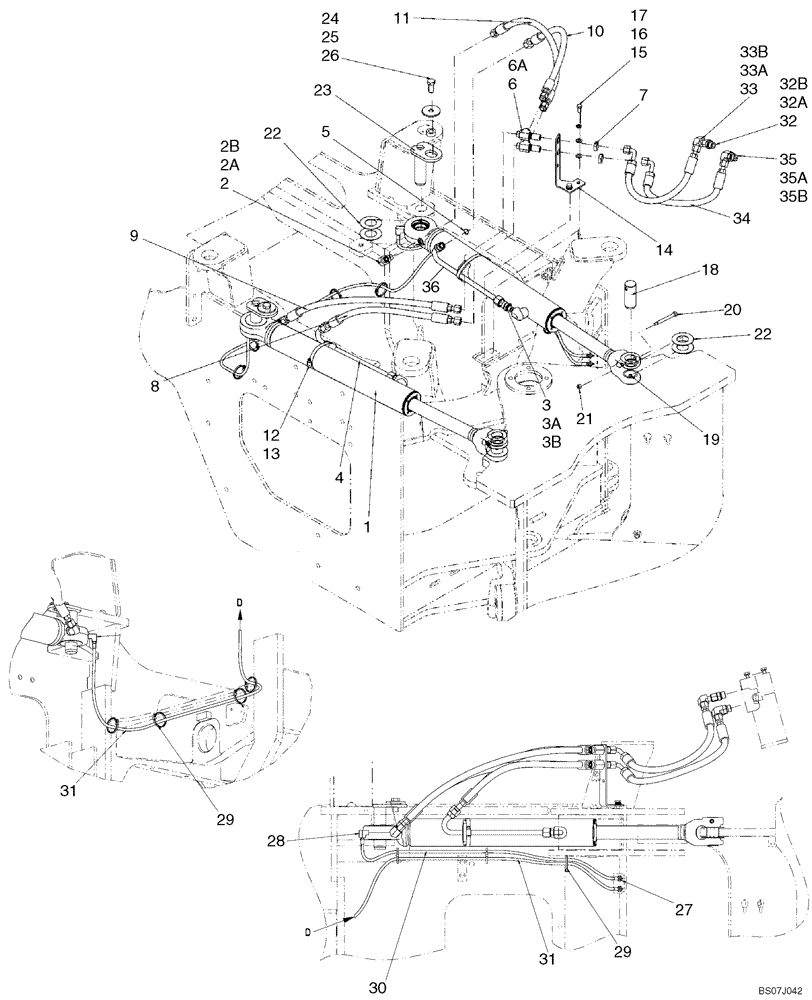

See Figure 05-14

2шт.

1

87452362R

REMAN-HYD CYLINDER

621E WHEEL LOADER TIER 3 (NA) (8/07-)

2шт.

1

87452362C

CORE-HYD CYLINDER

Return Number

2шт.

2

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl. 2A, 2B

2шт.

2a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

2b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

3

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Ref. 3A, 3B

2шт.

3a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss

1шт.

4

87664495

TUBE,16 mm OD

Steering Cylinder RH

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

86639080

TEE,13/16"-16 ORFS, Blkd Run

Incl. Ref. 6A

2шт.

6a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

Steering Base LH

2шт.

8

8602590

FLEXIBLE HOSE

Right Side Rod; 555 mm (21 - 7/8 in)

1шт.

9

87519795

HOSE ASSY.

Right Side Base; 752 mm (29 - 2/3 in)

1шт.

10

8602589

FLEXIBLE HOSE

Left Side Rod; 715 mm (28 - 5/32 in)

1шт.

11

8500460

FLEXIBLE HOSE

Left Side Base; 872 mm (34 - 1/3 in)

1шт.

12

8500483

BLOCK

2шт.

13

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

14

8602342

BRACKET

1шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

18

87559561

PIN,40mm OD x 95.1mm L

Steering

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

20

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

2шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

22

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

8шт.

23

87351646

PIN,39.96mm OD x 141mm L

2шт.

24

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

25

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

26

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

27

F53473

LOCK NUT,1/8-27 NPSM

2шт.

28

328082A1

ELBOW

2шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

7шт.

30

L54694

HOSE,4.8mm ID x 1041mm L

Grease, Rear Trunnion; 1041 mm (41 in)

1шт.

31

87559562

HOSE

Rear Steering Grease; 2324 mm (91 - 1/2 in)

1шт.

32

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Incl. Ref. 32A, 32B

1шт.

32a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

1шт.

32b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

33

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl. Ref. 33A, 33B

1шт.

33a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss

1шт.

33b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

34

87385246

HOSE ASSY.

Steering Cylinder; 569 mm (22 - 13/32 in)

2шт.

35

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

Incl. Refs. 35A, 35B

1шт.

35a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

35b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

1шт.

36

87664498

TUBE,16 mm OD

Steering Cylinder LH

1шт.
