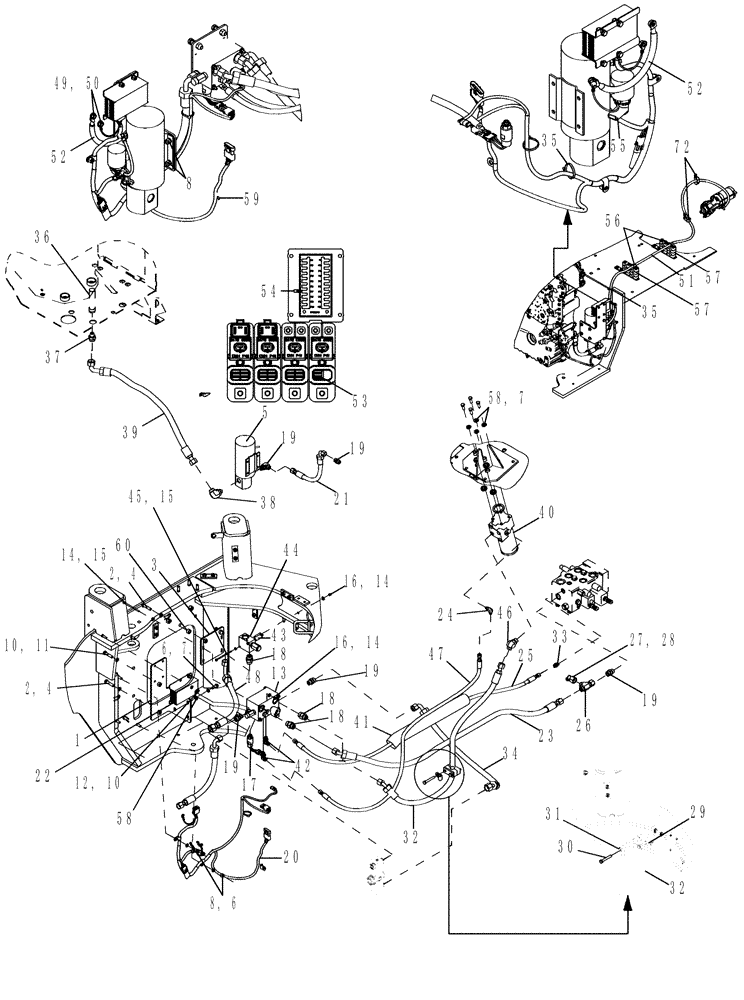

Запчасти Case 621E (05-08) - STEERING - HYDRAULICS - AUXILIARY (05) - STEERING

1

87693174

BRACKET

1шт.

2

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

4шт.

3

87653913

BRACKET

1шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

5

87581480

ELECTRIC PUMP

1шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

9

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

87609806

MANIFOLD

1шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

15

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

6шт.

16

832-10406

NUT,M6 x 1, Cl 8

6шт.

17

398888A1

PRESSURE SWITCH

1шт.

18

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

3шт.

19

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

3шт.

20

84217687

HARNESS

Secondary steering module harness

1шт.

21

87653914

HOSE

1шт.

22

8603171

MODULE

Secondary steering

1шт.

23

87653915

HOSE

1шт.

24

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

1шт.

25

87653975

HOSE

1шт.

26

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

27

324201A1

PLUG

1шт.

28

H434163

DUST CAP

1шт.

29

367489A1

BLOCK

1шт.

30

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

31

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

32

87653917

HOSE

1шт.

33

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

34

87692443

HOSE ASSY.,15.88mm ID x 998mm L, SAE 100R1

1шт.

35

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

7шт.

36

L129303

FILTER SCREEN

1шт.

37

87433494

HYD CONNECTOR

1шт.

38

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

39

87653928

HOSE

1шт.

40

87307060

HYDRAULIC VALVE

1шт.

41

87559559

HOSE PROTECTION

1шт.

42

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

2шт.

43

8500692

SPACER

2шт.

44

87427823

VALVE PRESSURE RELIE

1шт.

45

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

46

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

47

87653919

HOSE

1шт.

48

87653923

HOSE

1шт.

49

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

50

253347A1

NUT,Hex, M10 x 1.5

2шт.

51

87600841

CABLE

1шт.

52

L129707

NEG BATTERY CABLE

1шт.

53

87327335

FUSE,20 Amp

20 AMP

1шт.

54

121411A1

FUSE,7.5A, Mini, Brown

1шт.

55

L126713

BOOT

1шт.

56

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

57

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

58

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

59

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

60

D44696

BUSHING

2шт.

61

9603626

CLAMP

2шт.
