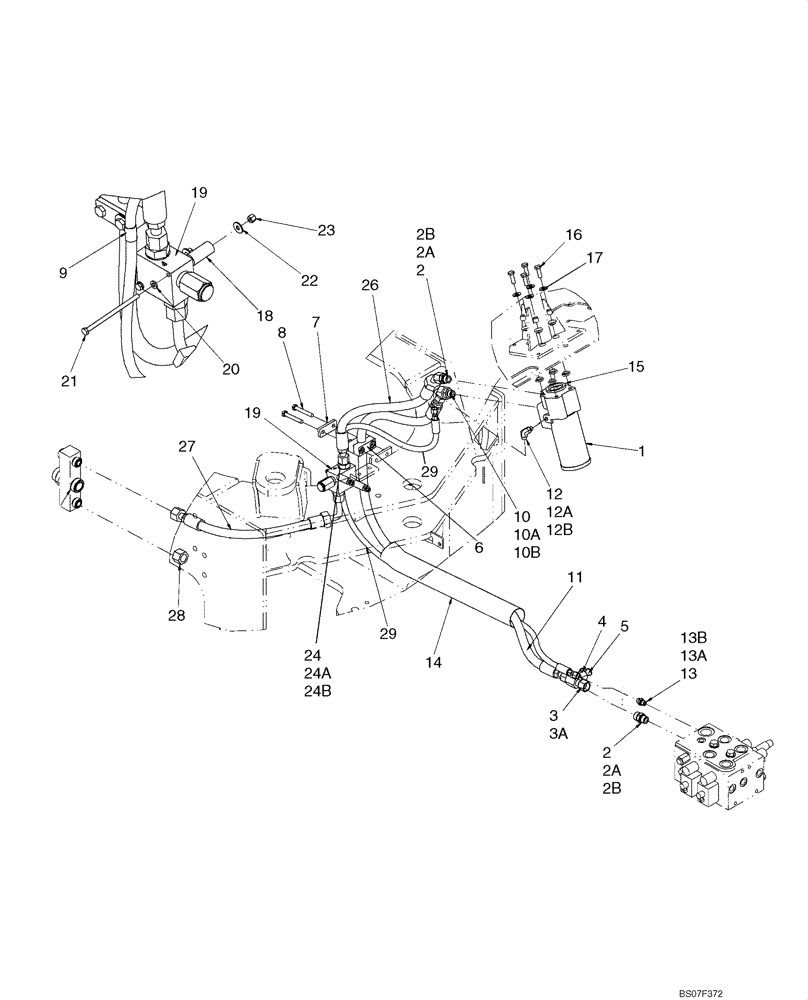

Запчасти Case 621E (05-07) - STEERING - HYDRAULICS (05) - STEERING

REF

INSTRUCTION

STANDARD STEERING, STEERING PRESSURE AND RETURN

1шт.

1

87307060

HYDRAULIC VALVE

Steering; See Figure 05-18

1шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 2A, 2B

2шт.

2a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

2шт.

2b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

3

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. Ref. 3A

1шт.

3a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

4

324201A1

PLUG

Diagnostic

1шт.

5

H434163

DUST CAP

1шт.

6

367489A1

BLOCK

1шт.

7

367658A1

PLATE

1шт.

8

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

9

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

10

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 10A, 10B

2шт.

10a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

11

87629993

HOSE

Steering Pressure; 1785 mm (70 - 1/4 in)

1шт.

12

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. Refs. 12A, 12B

1шт.

12a

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

12b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

13

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 13A, 13B

1шт.

13a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

14

87559559

HOSE PROTECTION

Hose, 60 x 554 mm

1шт.

15

76043957

GASKET

1шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

18

8500692

SPACER

2шт.

19

87427823

VALVE PRESSURE RELIE

1шт.

20

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

21

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

2шт.

22

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

23

832-10406

NUT,M6 x 1, Cl 8

2шт.

24

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl Ref 24A, 24B

1шт.

24a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

87519793

HOSE ASSY.

Steering Return, Control Valve to Relief Valve; 599 mm (23 - 9/16 in)

1шт.

27

87653923

HOSE

Steering Return, Relief Valve to Filter; 544 mm (24 - 13/32 in)

1шт.

28

701-907

CAP,1-3/16" - 12

1шт.

29

87651227

HOSE

Steering Load Sense; 2100 mm (82 - 3/4 in)

1шт.
