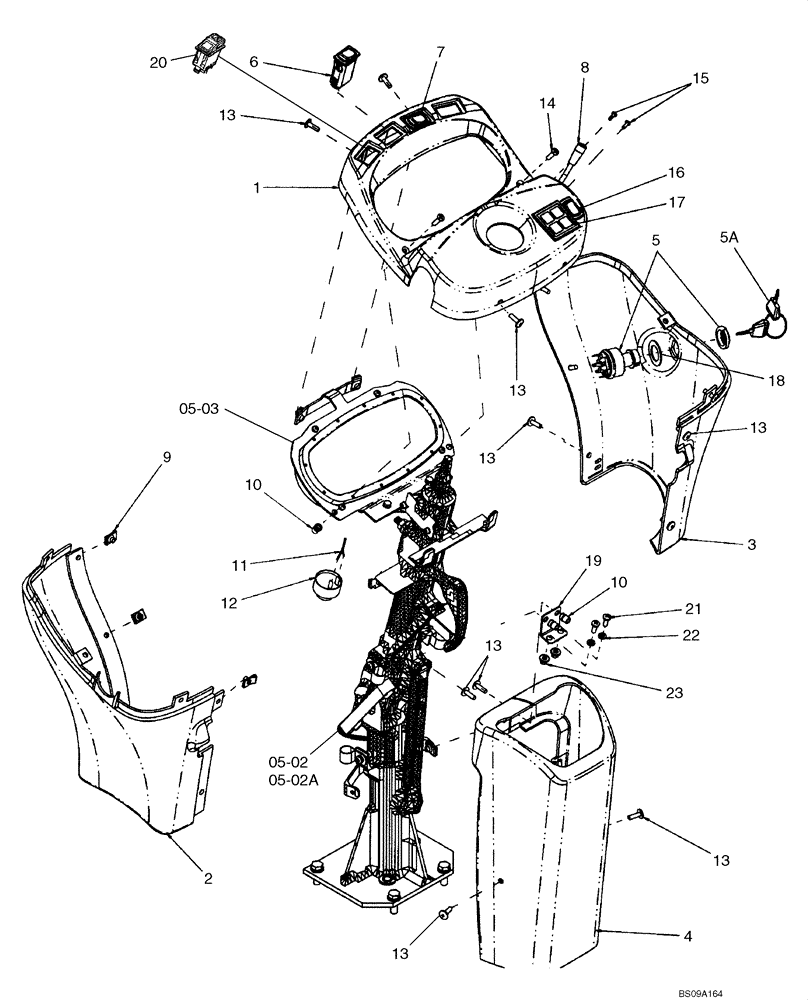

Запчасти Case 621E (05-04) - CAB - STEERING COLUMN - COVERS, SWITCHES (05) - STEERING

1

76303017

DASH PANEL

Dashboard Trim

1шт.

2

76303019

COVER

LH Steering Column

1шт.

3

76303020

COVER

RH Steering Column

1шт.

4

76303021

COVER

Lower Steering Column

1шт.

5

282775A1

IGNITION SWITCH

Incl. Ref. 5A

1шт.

5a

1964831C2

IGNITION KEY

Ignition

1шт.

6

374434A2

SWITCH

Pilot Control

1шт.

7

374426A2

SWITCH

Hazard

1шт.

8

389487A1

LIGHT SWITCH

1шт.

9

833-40306

SPRING NUT,M6, U

5шт.

10

404287A1

INSERT,M6

4шт.

11

76303450

BUZZER

Harness; If Used

1шт.

12

76028370

HORN

Buzzer

1шт.

12a

87517129

WIRE HARNESS

Buzzer, Not Illustrated

1шт.

13

540-719

SCREW,Cross Pan Hd, M6 x 20

Replaces 87664045 Screw, Cheese Hd, M6 x 20, 5.8, Used On Some Models

11шт.

14

843-2625

SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8

2шт.

15

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

2шт.

16

374424A2

PARK BRAKE SWITCH

1шт.

17

87372804

BOX

1шт.

18

76303478

BACK-UP RING

Nylon

1шт.

19

76303516

BRACKET

1шт.

20

87486588

SWITCH

Joystick Steering Activation

1шт.

21

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

8шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

23

76048924

BUSHING

Threaded; If Used

2шт.
