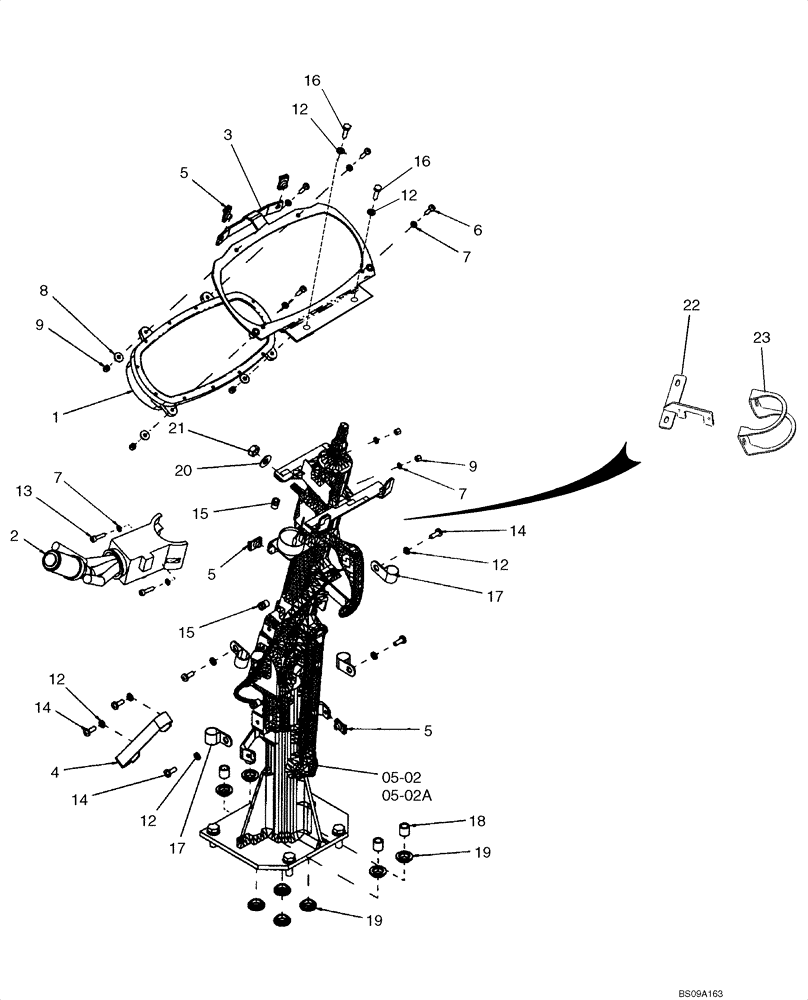

Запчасти Case 621E (05-03) - CAB - STEERING COLUMN - ACCESSORY (05) - STEERING

1

87372814

INSTRUMENT CLUSTER

1шт.

87372814R

REMAN-INSTR CLUSTER

621E TIER 3 (8/07-)

1шт.

87372814C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

238270A1

CONTROL

1шт.

238270A1R

REMAN-JOYSTICK

621E - WHEEL LOADER TIER 3 (NA) (8/07-)

1шт.

238270A1C

CORE-JOYSTICK

Return Number

1шт.

3

76303295

BRACKET

1шт.

4

349372A1

GROUND CABLE

Ground

1шт.

5

833-40306

SPRING NUT,M6, U

6шт.

6

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

4шт.

7

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

8

895-25005

WASHER,M5 x 15 x 1.6

4шт.

9

832-10405

NUT,M5 x .8, Cl 8

6шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

13

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

14

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

6шт.

15

76046110

THREADED INSERT,M6

6шт.

16

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

18

76081690

SPACER,10.3mm ID x 15mm OD x 14.8mm L

4шт.

19

71476260

SPACER,14.5mm ID x 19.5mm OD x 7mm L

8шт.

20

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

21

253347A1

NUT,Hex, M10 x 1.5

1шт.

87713136

SERVICE KIT

Shifter Bracket; For Service Repair Of A Broken Welded Mounting Bracket; Incl. Refs. 22, 23

1шт.

22

87687560

BRACKET

Gear Control Switch

1шт.

23

76303624

BRACKET

Column

1шт.
