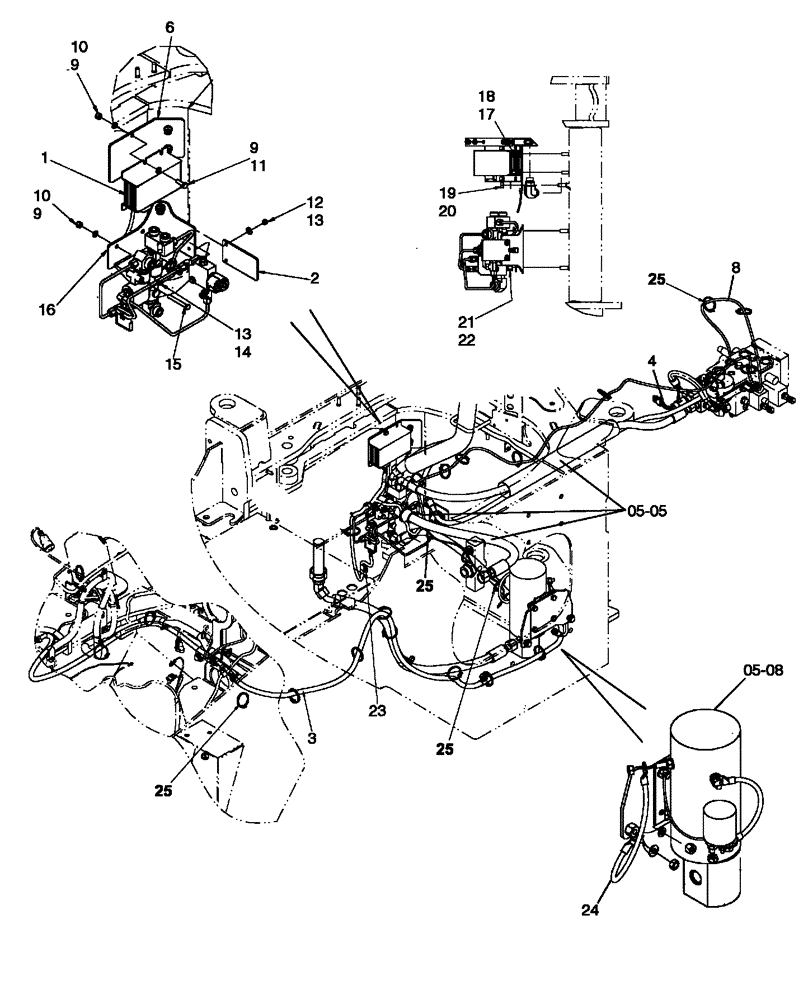

Запчасти Case 521E (04-17) - ELECTRICAL - STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS

1

8603171

MODULE

Auxiliary Steering

1шт.

2

87403158

SHIELD

Auxiliary Steering Solenoid Valve

1шт.

3

87696486

ELECTRIC CABLE

Auxiliary, Serial Range: Steering-Starter

1шт.

4

398888A1

PRESSURE SWITCH

Auxiliary Steering Pressure

1шт.

5

L126713

BOOT

Electrical, Not Illustrated

1шт.

6

87369996

BRACKET

Auxiliary Steering Module

1шт.

7

84217684

HARNESS

Auxiliary Steering Module with Diode Module, Ref. 04-17A, Start Serial: NAF208404

1шт.

8

87724466

HARNESS

Auxiliary Steering, Serial Range: -NAF208404

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

12

832-10406

NUT,M6 x 1, Cl 8

2шт.

13

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

14

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

15

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

16

87367465

BRACKET

Auxiliary Steering

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

19

253347A1

NUT,Hex, M10 x 1.5

2шт.

20

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

21

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

23

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

24

L129707

NEG BATTERY CABLE

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

29шт.

26

A187874

MODULE

Auxiliary Steering Module

1шт.

27

225389C1

CONNECTOR, ELEC

CONNECTOR

1шт.

28

1964712C1

TERMINAL CONNECTOR

1шт.

29

1964704C1

TERMINAL CONNECTOR

2шт.

30

245485C1

ELEC CONNECTOR,Male, 3 Pin

2шт.

31

225316C1

ELEC CONNECTOR,Female, 2 Pin

1шт.

32

245489C1

ELEC CONNECTOR,Male, 6 Pin

1шт.
