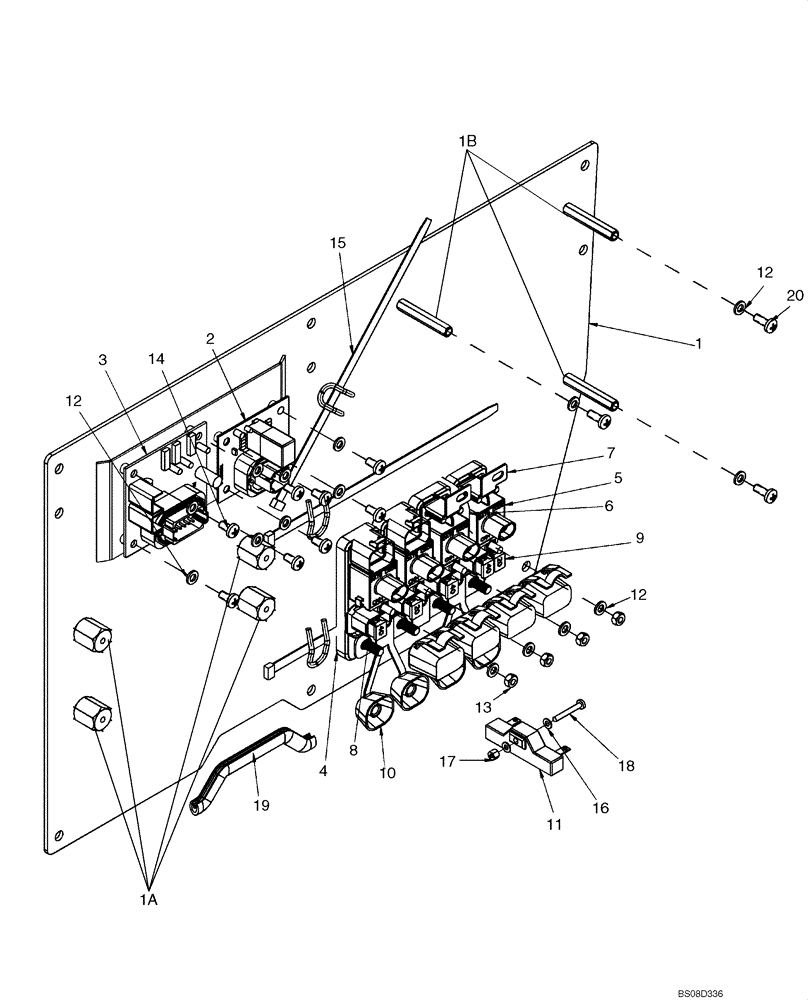

Запчасти Case 521E (04-14) - PANEL, CONTROL - FUSE AND RELAY MOUNTING (04) - ELECTRICAL SYSTEMS

1

87703225

PLATE

Right Console; Bushings Serviced Separately

1шт.

1a

87700053

BUSHING,Hex, M5 x 0.8 x 24mm L

Hex

4шт.

1b

87700052

BUSHING,Hex, M6 x 1 x 57mm L

Hex

3шт.

2

87364605

TIMER

Power Off Delay

1шт.

3

232364A1

FLASHER UNIT

1шт.

4

87318627

MODULE

D.6

2шт.

5

87315250

MODULE

Electrical Center

2шт.

6

87318617

JUNCTION BLOCK

JOINER, PRM

1шт.

7

87318620

BAR

RTMR to PRM Bus

2шт.

8

87318612

BAR ASSY.

PRM Input Bus Bar

1шт.

9

87327335

FUSE,20 Amp

32 Volt, 20 Amp

2шт.

10

87327346

FUSE,40A, Green

32 Volt, 40 Amp

3шт.

11

F22316

RESISTOR,75 Ohms 0.2 Amps DC

1шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

15шт.

13

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

14

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

8шт.

15

885180004

CLAMP

Cable

3шт.

16

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

17

825-1404

NUT,M4, Cl 8

2шт.

18

86511825

SCREW,Phillips Drive, Pan HD, M4 x 30mm, Cl 4.8

1шт.

19

87661964

GASKET

GASKET, 154mm

1шт.

20

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

1шт.
