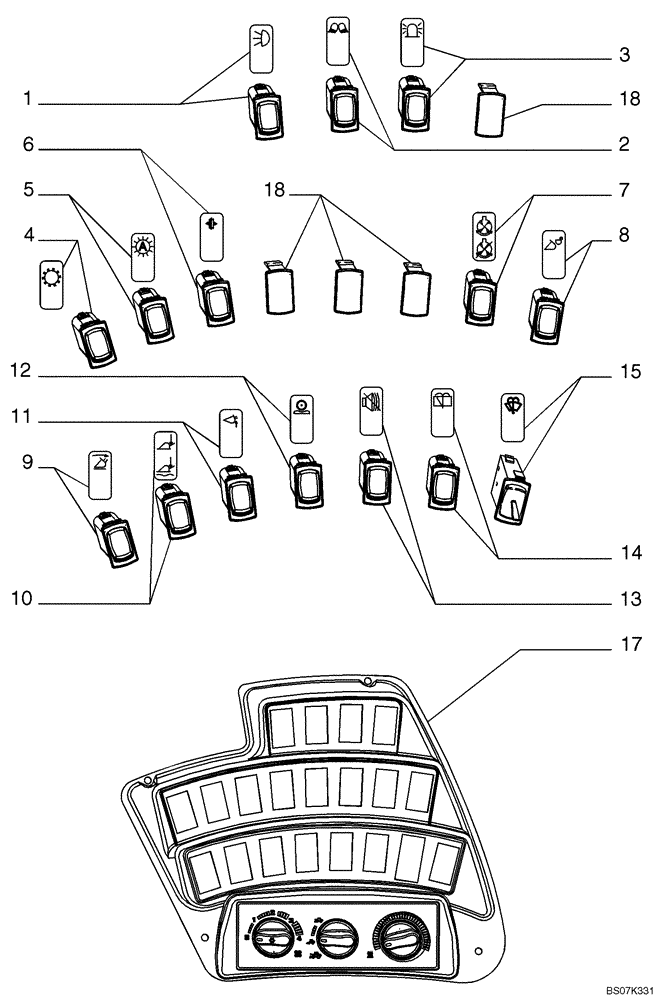

Запчасти Case 521E (04-13) - PANEL, CONTROL - SWITCHES (04) - ELECTRICAL SYSTEMS

1

87350054

LIGHT SWITCH

Drive Lights

1шт.

2

87350052

LIGHT SWITCH

Work Lights

1шт.

3

374430A2

BEACON SWITCH

Rotating Beacon

1шт.

4

87350044

SWITCH

Transmission Enable

1шт.

5

374431A2

SWITCH

Transmission Auto

1шт.

6

374421A4

SWITCH

Declutch

1шт.

7

87350049

SWITCH

Fan Control

1шт.

8

364444A2

SWITCH

Pin Engage

1шт.

9

87350045

SWITCH

, Serial Range: Return-Dig

1шт.

10

87350048

SWITCH

, Serial Range: Return-Travel/Float

1шт.

11

87350047

SWITCH

Height Control, High

1шт.

12

87350055

SWITCH

Ride Control

1шт.

13

374433A3

SWITCH

Back Up Alarm

1шт.

14

374429A2

WINDSHIELD WIPER SWI

Rear Wiper

1шт.

15

87620692

SWITCH

Front Wiper

1шт.

17

76303030

PANEL

Switch Panel

1шт.

18

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

4-11шт.

19

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

For Switch Panel Mounting, Not Illustrated; Replaces 87582901 Screw Used On Some Models

4шт.
