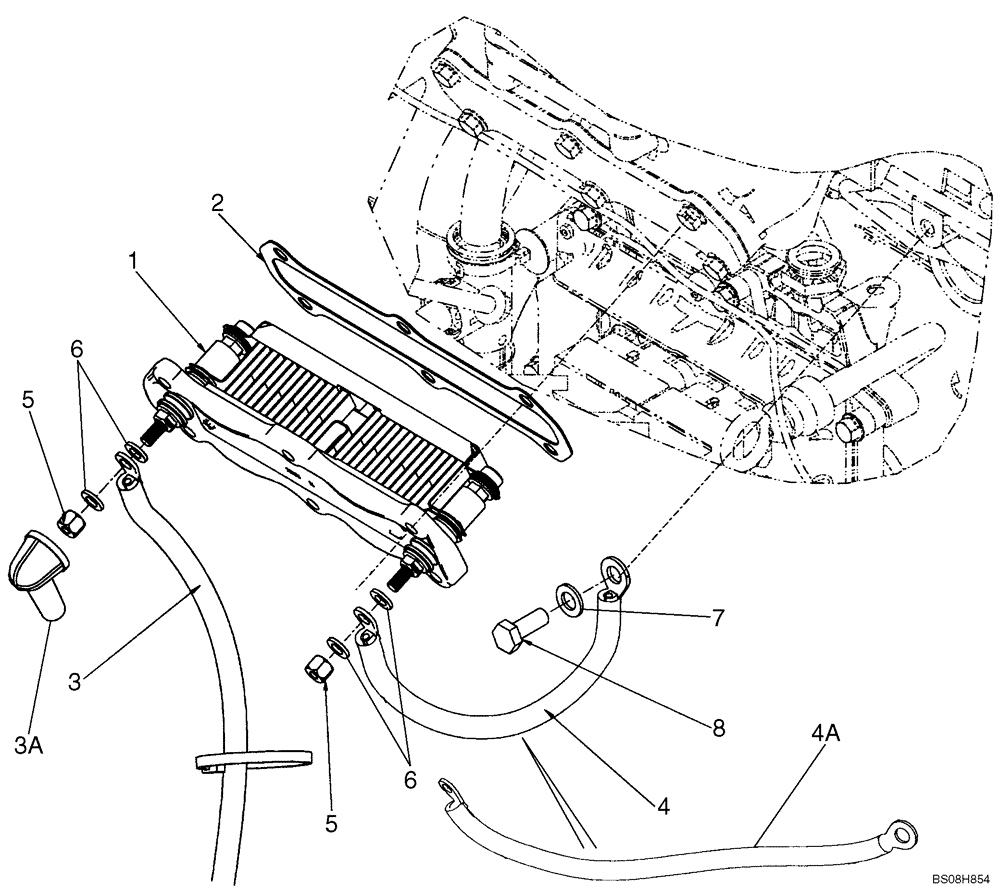

Запчасти Case 521E (04-11A) - GRID HEATER (04) - ELECTRICAL SYSTEMS

1

87300128

HEATER,24V, 2400W

ASSY. 24V

1шт.

2

2854701

GASKET,0.8mm Thk

1шт.

3

87696487

ELECTRIC CABLE

Grid Heater Power, 1135 mm (44 - 11/16 in), Incl. Ref. 3A

1шт.

3a

87451484

BOOT

Electrical

1шт.

4

87629630

ELECTRIC CABLE

Grid Heater Ground, 231 mm (9 - 3/32 in); If Used

1шт.

4a

87398558

CABLE

Grid Heater Ground, 344 mm (13 - 17/32 in); If Used

1шт.

5

832-10406

NUT,M6 x 1, Cl 8

2шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.
