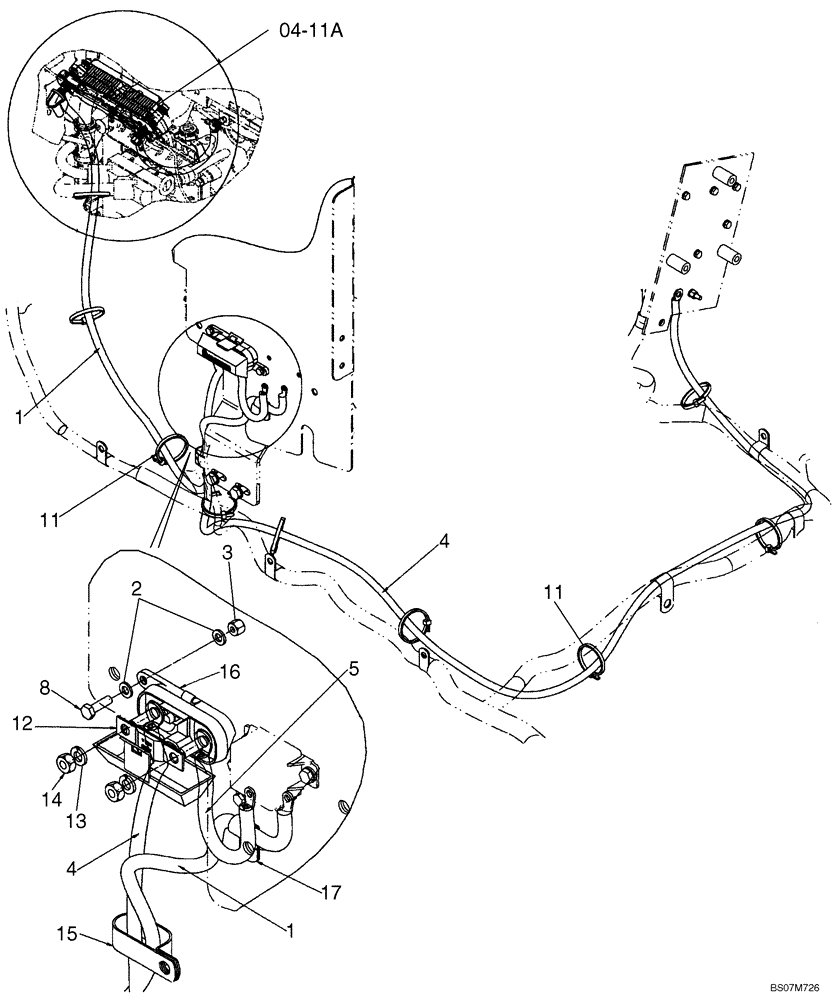

Запчасти Case 521E (04-11) - HARNESS - GRID HEATER (04) - ELECTRICAL SYSTEMS

1

87696487

ELECTRIC CABLE

Grid Heater Power, 1135 mm (44 - 11/16 in), Incl. Ref. 1A

1шт.

1a

87451484

BOOT

Electrical; Not Illustrated

1шт.

2

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

3

832-10406

NUT,M6 x 1, Cl 8

2шт.

4

87629629

ELECTRIC CABLE

Grid Heater B+, 2425 mm (95 - 1/2 in)

1шт.

5

87629628

ELECTRIC CABLE

Grid Heater Fuse, 176 mm (6 - 59/64 in)

1шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

9шт.

12

8501311

FUSE,150A, Megaval

150 Amp

1шт.

13

892-11008

LOCK WASHER,8mm ID

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

R54363

CLAMP

Double

1шт.

16

440038A1

JUNCTION BLOCK

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.
