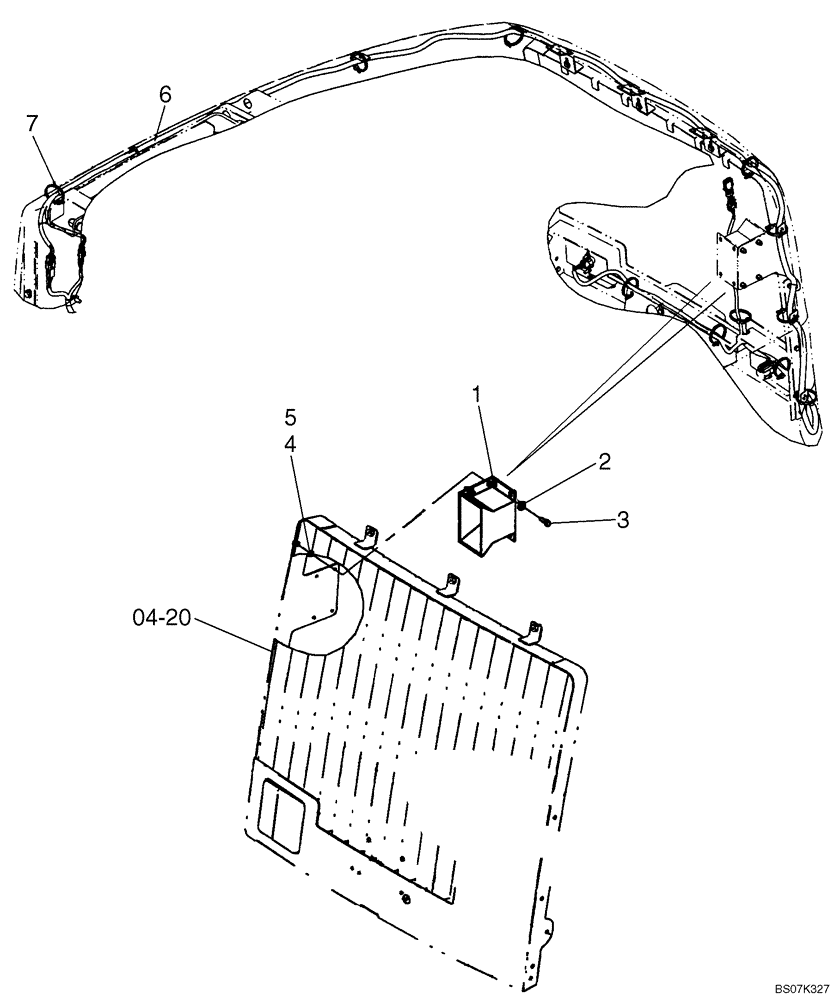

Запчасти Case 521E (04-09) - HARNESS, HOOD - ALARM, BACKUP (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

Back-Up

1шт.

2

495-21031

WASHER,1/4"

4шт.

3

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

87696485

HARNESS

Hood, Incl. Ref. 6A

1шт.

6a

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cav, Connects License Plate Light, Not Illustrated

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Wire Tie

17шт.
