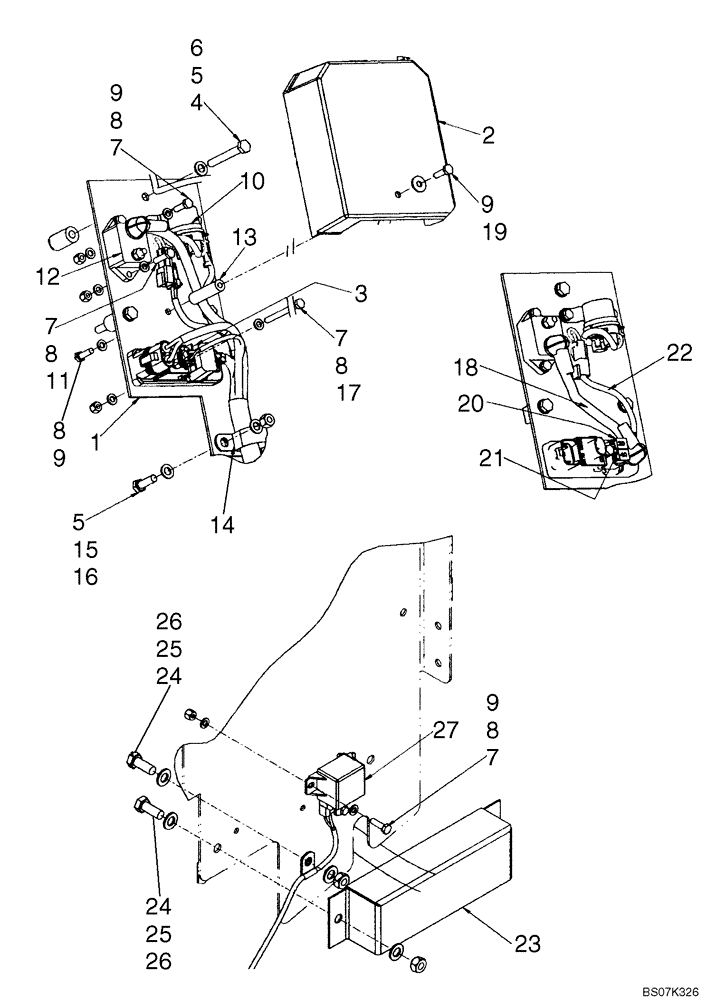

Запчасти Case 521E (04-07) - HARNESS, ENGINE - FUSES AND RELAYS (04) - ELECTRICAL SYSTEMS

1

87724467

PLATE

Relay Mounting

1шт.

2

87644183

COVER

Relay

1шт.

3

87318627

MODULE

Relay Module

1шт.

4

82024562

SPACER,8.5mm ID x 18mm OD x 31.6mm L

3шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

6

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

3шт.

7

832-10406

NUT,M6 x 1, Cl 8

5-7шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11-15шт.

9

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

6шт.

10

87351908

SOLENOID SWITCH

Starting Relay

1шт.

11

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

If Used

2шт.

12

87315269

BREAKER

105A; If Used

1шт.

13

253065A1

SPACER

Relay cover

1шт.

14

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

17

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

1шт.

18

87629633

ELECTRIC CABLE

Cab B+; If Used

1шт.

19

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

20

87327335

FUSE,20 Amp

32V, 20A

1шт.

21

87327346

FUSE,40A, Green

32V, 40A

1шт.

22

87629634

ELECTRIC CABLE

Starter Relay

1шт.

23

87644184

COVER

Grid Heater Relay and Fuse

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

25

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

27

1546485C1

RELAY,24V

Grid Heater

1шт.
