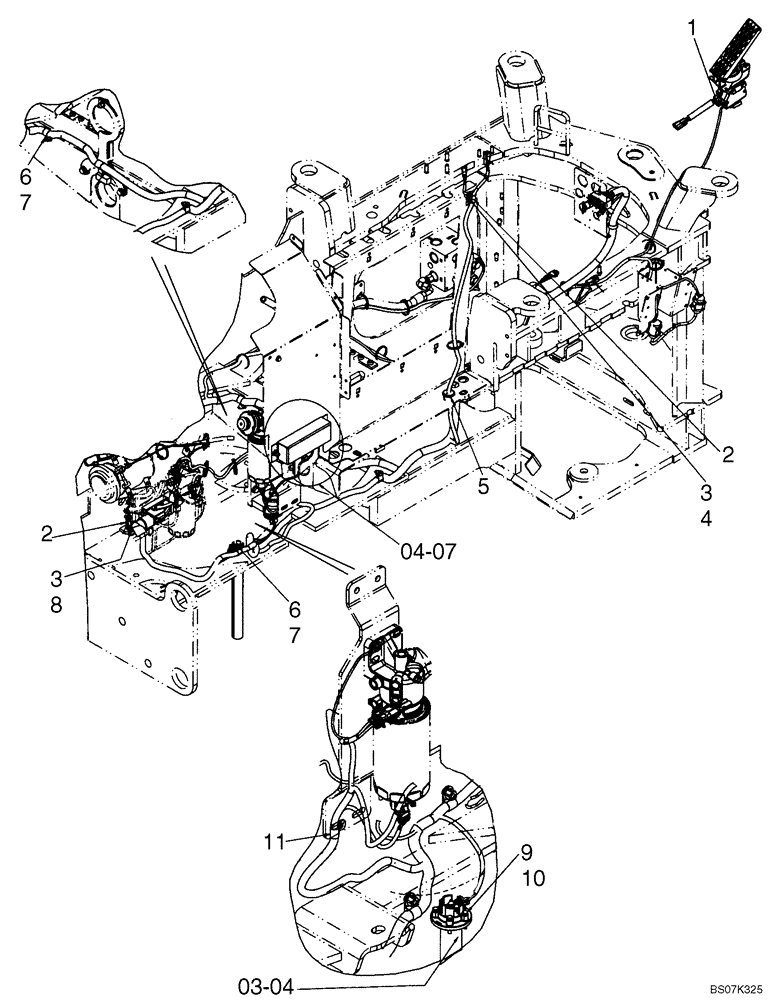

Запчасти Case 521E (04-06) - HARNESS, ENGINE - THROTTLE CONTROL (04) - ELECTRICAL SYSTEMS

1

87696524

THROTTLE

Engine Throttle

1шт.

2

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

5

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

1шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

10

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

If Used

5шт.

10

87733381

SCREW,Hex, #10 x 1 1/4", Gr 5

Hex, #10-24 x 1-1/4; If Used

5шт.

11

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.
