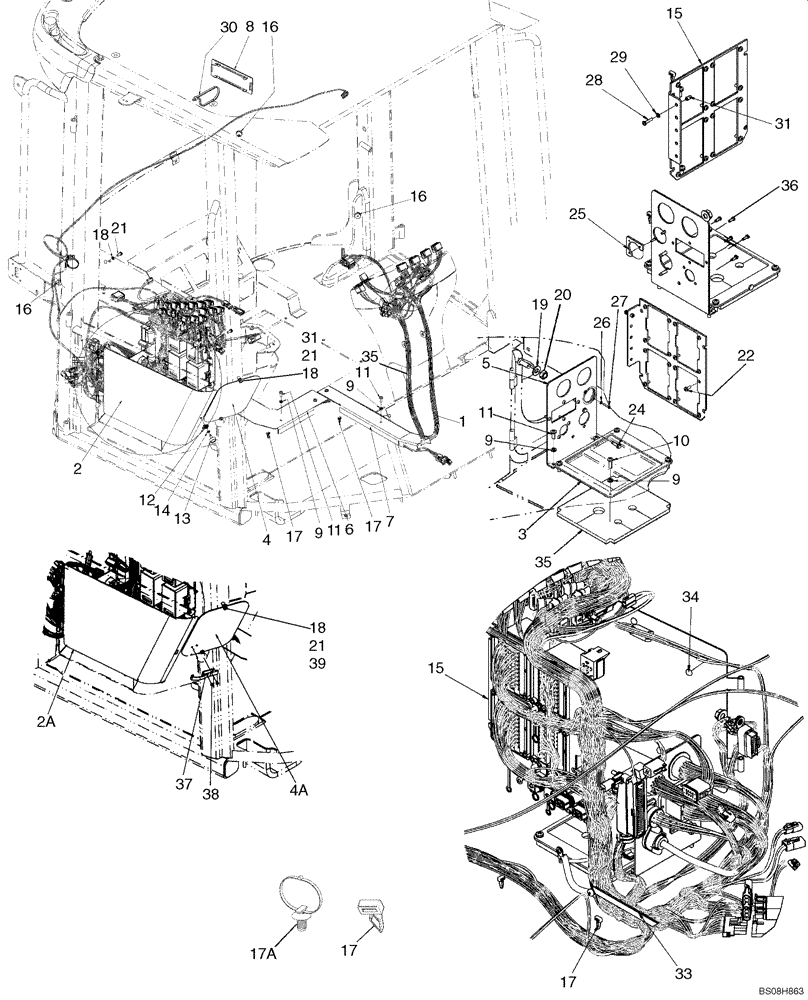

Запчасти Case 521E (04-04) - HARNESS - PANEL, CONTROL - CAB (04) - ELECTRICAL SYSTEMS

1

87758166

WIRE HARNESS

Cab/Canopy Control Panel; Replaces 87517055, 87748734

1шт.

2

76303325

DOOR COVER

Electrical Access, Used With Pin, Ref. 13

1шт.

2

87721000

DOOR

COVER, Electrical Access, Used With Latch, Ref. 37

1шт.

3

76303258

PLATE

1шт.

4

76303489

COVER

Console Access, Used With Pin, Ref. 13

1шт.

4

87754956

PLATE

Console Access, Used With Latch, Ref. 37

1шт.

4a

84185846

DECAL

Inside Access Door (Not Shown)

2шт.

5

87372240

PLATE

1шт.

6

76303498

BRACKET

Cable Cover

1шт.

7

76303260

COVER

Central Cable

1шт.

8

76303606

COVER

Radio; Cab Models Only

1шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11шт.

10

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

If Used

4шт.

10

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

If Used

4шт.

11

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

7шт.

12

76303320

CLIP

If Used

1шт.

13

76303321

PIN

If Used

1шт.

14

76303319

WASHER

If Used

1шт.

15

87341862

PLATE

1шт.

16

71485202

GROMMET,M5 x 21 x 16

3шт.

17

76303347

COLLAR

If Used

5шт.

17

87668737

CABLE TIE,203.2mm L, Nylon, Black

With Mount, If Used; Replaces 87719265 Fastener Used On Some Models

5шт.

18

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

19

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

20

253347A1

NUT,Hex, M10 x 1.5

1шт.

21

297850A1

SCREW,Cross Pan Hd, M6 x 16

8шт.

22

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

16шт.

24

86509545

SELF-TAP SCREW,#10 - 24 x 3/4"

2шт.

25

76303488

PLATE

Connector

1шт.

26

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

2шт.

27

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

2шт.

28

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

1шт.

29

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

31

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

33

87525493

RUBBER SEAL,154mm L

Wire Protection, If Used

1шт.

34

322197950

SPACER

6шт.

35

76303261

SPACER

1шт.

36

86632692

SELF-TAP SCREW,Phillips Drive, Pan HD, #8 - 18 x 1/2"

If Used

6шт.

36

86509545

SELF-TAP SCREW,#10 - 24 x 3/4"

#10 x .3/4", If Used

6шт.

37

60-4640T1

LATCH

If Used

1шт.

38

151-515

RIVET,Pop, .146" x .425"

If Used

2шт.

39

404287A1

INSERT,M6

2шт.
