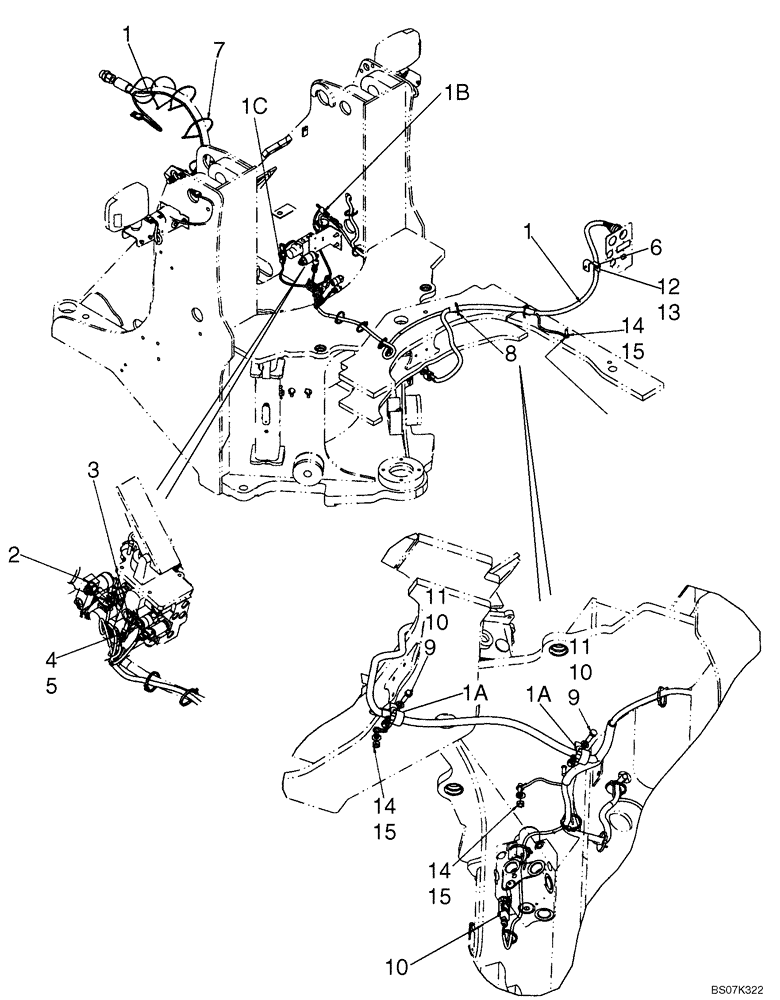

Запчасти Case 521E (04-03) - HARNESS, FRONT - Z-BAR (04) - ELECTRICAL SYSTEMS

1

87629625

HARNESS

Front Chassis, Z-Bar, Incl. Refs. 1A - 1D

1шт.

1a

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

2шт.

1b

8602937

WIRE HARNESS

Rollback Pressure Switch

1шт.

1c

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cav

1шт.

1d

291717A1

ELEC CONNECTOR,Male, 2 Pin

2-Pin, Not Illustrated

1шт.

2

87549589

SWITCH

Brake Declutch

1шт.

3

84177015

PRESSURE SWITCH

Brake Light; Incl. O-Ring; Replaces 87307240 Pressure Switch Used On Some Models

1шт.

4

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

12 mm

1шт.

5

8605738

PRESSURE SWITCH

Brake Warning Pressure

1шт.

6

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

1шт.

7

19-135

CABLE TIE

CABLE STRAP

7шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

26шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

832-10406

NUT,M6 x 1, Cl 8

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

3шт.

15

253347A1

NUT,Hex, M10 x 1.5

Brass

3шт.
