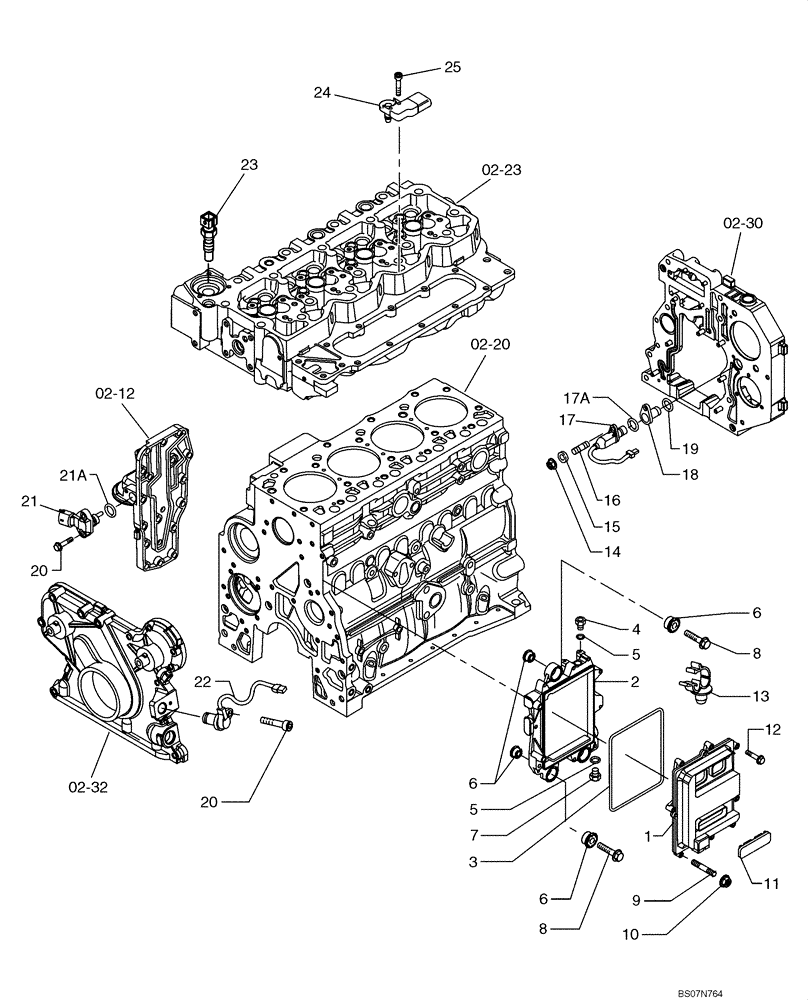

Запчасти Case 521E (03-09) - FUEL INJECTION SYSTEM - MODULE, ENGINE CONTROL (03) - FUEL SYSTEM

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 25

1шт.

1

2854594

ECU

1шт.

1

2854594R

REMAN-MODULE

Remanufactured Electronic Control Unit

1шт.

1

2854594C

CORE-MODULE

CORE-MODUL Return Number, ELECTRONIC CONTROL UNIT

1шт.

2854595

BRACKET

Electronic Unit Mounting, Incl. Refs. 2 - 7

1шт.

2

2854596

BRACKET

Support, Electronic Unit

1шт.

3

2854079

GASKET,6.45mm Thk

1шт.

4

4896542

HYD CONNECTOR,M12 x 1.5 ORB x 6 ORFS

M12 x 1.5

1шт.

5

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

2шт.

6

2855150

INSULATOR BLOCK

Stop

6шт.

7

4890964

FITTING,M12 x 1.5

1шт.

8

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

3шт.

9

2854593

STUD

STUD

1шт.

10

4899057

FLANGE NUT,M6

1шт.

11

2852825

PLUG,100mm x 40mm L

1шт.

12

16586021

SCREW,M6 x 30mm

7шт.

13

2852486

CABLE CLIP

2шт.

14

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

15

4899124

WASHER

1шт.

16

4895157

STUD

1шт.

17

4890190

SENSOR

Speed, Incl. Ref. 17A

1шт.

17a

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

17.17 x 1.78 mm

1шт.

18

4892255

HOUSING

Sender Unit

1шт.

19

14453881

O-RING,23.52mm ID x 1.78" Width

1шт.

20

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

21

4890193

SENSOR

Temperature, Incl. Ref. 21A

1шт.

21a

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

22

4890189

SENSOR

Speed

1шт.

23

4897224

SENSOR

Temperature

1шт.

24

2852821

SENSOR

ECM; Boost/Air Temperature

1шт.

25

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

1шт.
