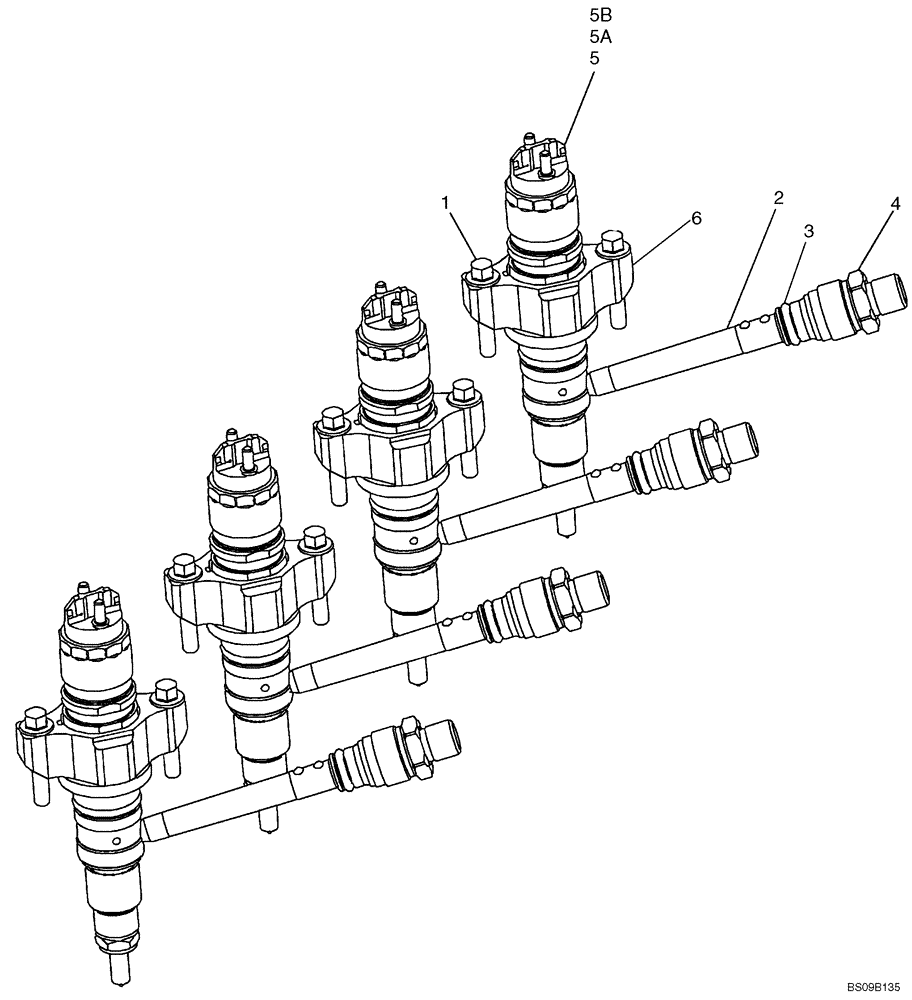

Запчасти Case 521E (03-07) - FUEL INJECTION SYSTEM - INJECTOR (03) - FUEL SYSTEM

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 6

1шт.

1

4895483

BOLT,Flng, M6 x 1 x 35mm

M6 x 35

8шт.

2

2854606

FUEL TUBE,Connector Assembly

ASSY. Incl. Ref. 3

4шт.

3

4890929

O-RING,3mm Thk x 11mm ID

1шт.

4

4893739

TUBE NUT,Hex, M22 x 1.5

4шт.

5

2855135

FUEL SYSTEM INJECTOR

Incl. Refs. 5A, 5B, 6

4шт.

5

2855135R

REMAN-FUEL INJECTOR

Injector Nozzle

4шт.

5

2855135C

CORE-FUEL INJECTOR

Return Number

4шт.

5a

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

1шт.

5b

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

20.9 ID x 3.0 DIA

1шт.

6

2854609

BRACKET

Retainer

1шт.
