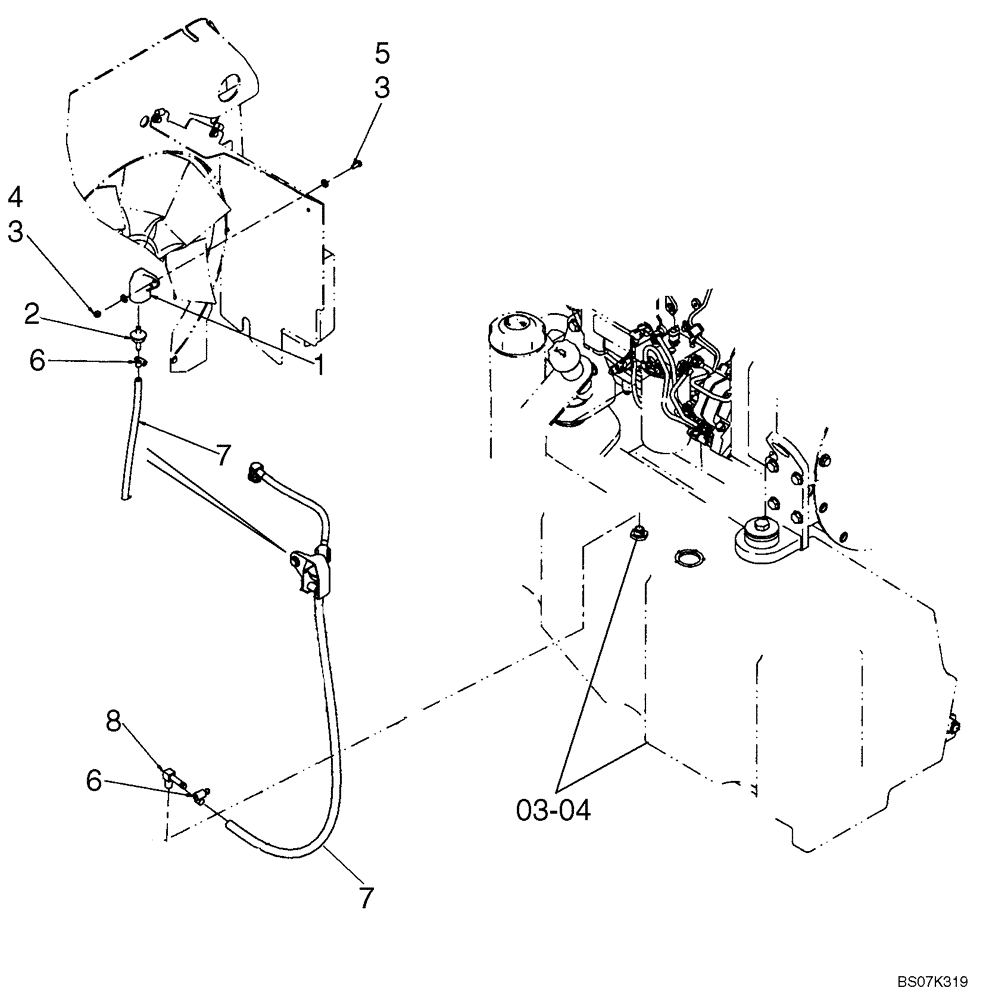

Запчасти Case 521E (03-04A) - FUEL TANK - BREATHER (03) - FUEL SYSTEM

1

186814A1

CAP

Fuel Tank Vent

1шт.

2

T103750

BREATHER

Breather

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

7

A21562X

LARGE HOSE,9.65mm ID x 711.2mm L

HOSE,LARGE Fuel Tank Breather, 991 mm (39 in) Cut From Bulk

1шт.

8

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.
