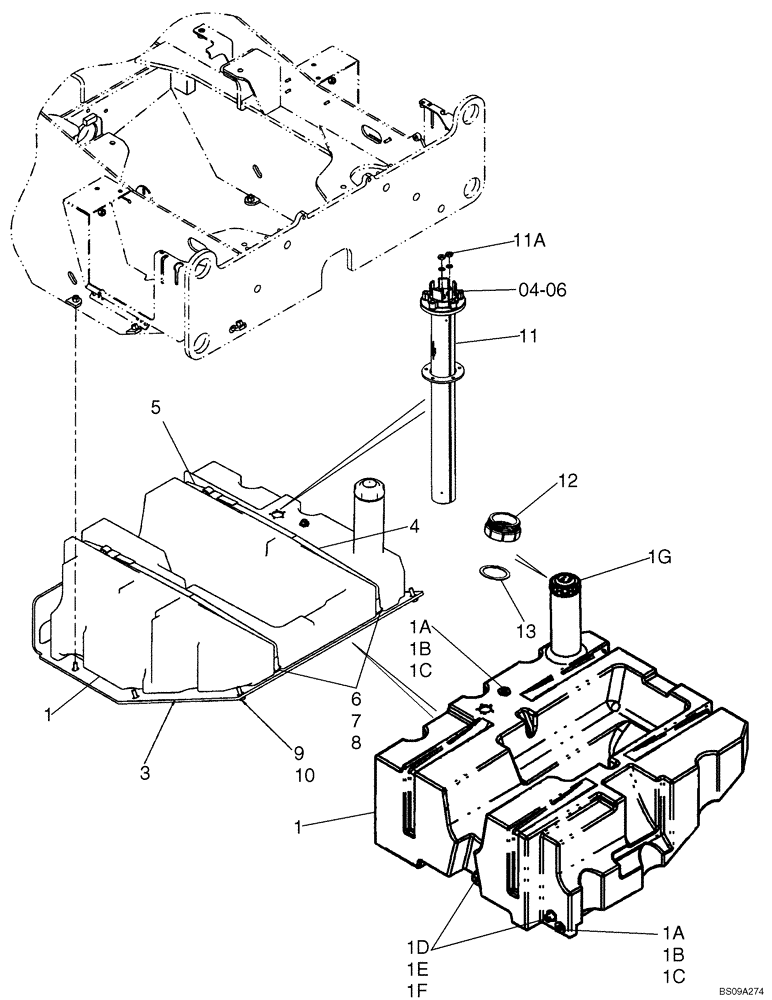

Запчасти Case 521E (03-04) - FUEL TANK FILLER - SENDER (03) - FUEL SYSTEM

1

87400409

FUEL TANK

Assy. Incl. Refs. 1A - 1G

1шт.

1a

87435505

FITTING

Replaces 87435505

2шт.

1b

1251791C1

JAM NUT,3/4" - 16 LH Thread

2шт.

1c

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

1d

87707148

FITTING

Replaces 87435224

2шт.

1e

282709A1

NUT

2шт.

1f

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

1g

8604443

FILLER CAP

Fuel Tank

1шт.

2

345-87

SEALANT

Not Illustrated

1шт.

3

87315595

PLATE

Fuel Tank

1шт.

4

366904A1

SECURING STRAP

Fuel Tank, 1342 mm (52 - 27/32 in)

2шт.

5

366905A1

SECURING STRAP

Fuel Tank, 476 mm (18 - 3/4 in)

2шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

11

87542710

SENDER UNIT

Fuel Level, Incl. Ref. 11A, See Figure 04-06 For Mounting Hardware

1шт.

11a

87617083

KIT

Nut Pack

1шт.

12

84130479

ADAPTER

Fuel Tank; If Used

1шт.

13

84144829

GASKET,67mm ID x 84mm OD x 3mm Thk

GASKET; If Used

1шт.
