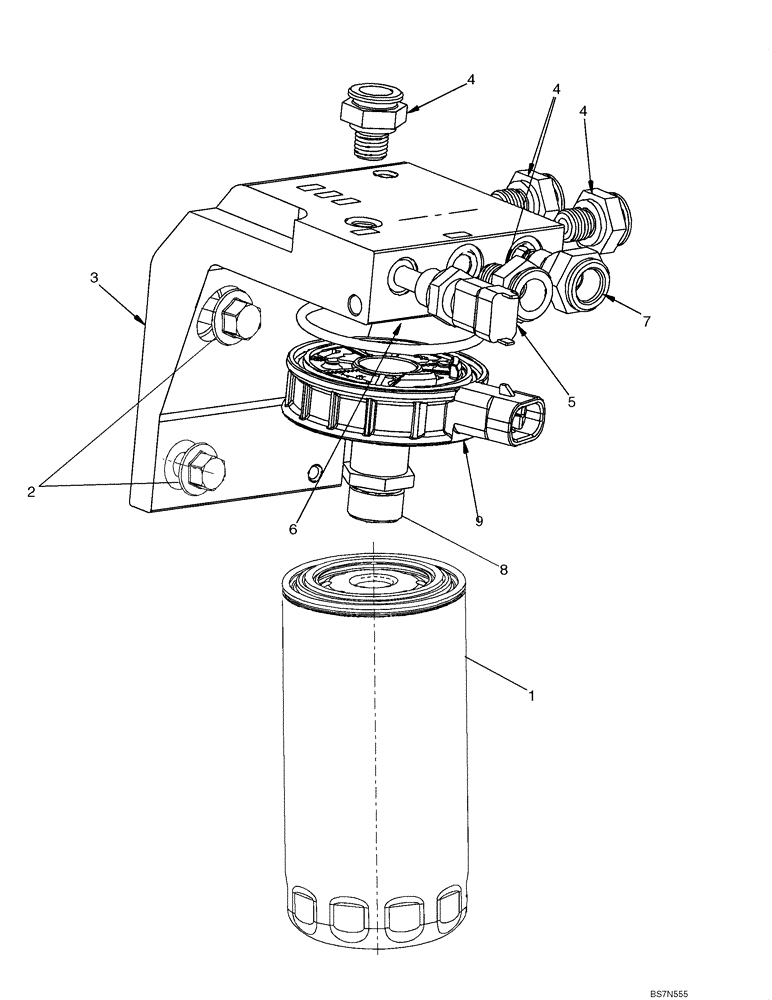

Запчасти Case 521E (03-03) - FILTER, FUEL (03) - FUEL SYSTEM

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 9

1шт.

1

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

1шт.

2

2854566

SCREW,Hex, M12 x 1.75 x 30mm

M12 x 1.75 x 30

2шт.

2854561

HOUSING

ASSY. With Heater, Incl. Refs. 3 - 9

1шт.

3

2854562

BRACKET

Fuel Filter Head

1шт.

4

2854563

FITTING

Quick Disconnect

4шт.

5

4897224

SENSOR

Temperature

1шт.

6

4898876

O-RING,63.1mm ID x 3.53mm Width

1шт.

7

2854564

FITTING,M12 x 1.5 - 12 H9

1шт.

8

2854565

BUSHING

Threaded Connector

1шт.

9

4897838

HEATER

Fuel

1шт.
