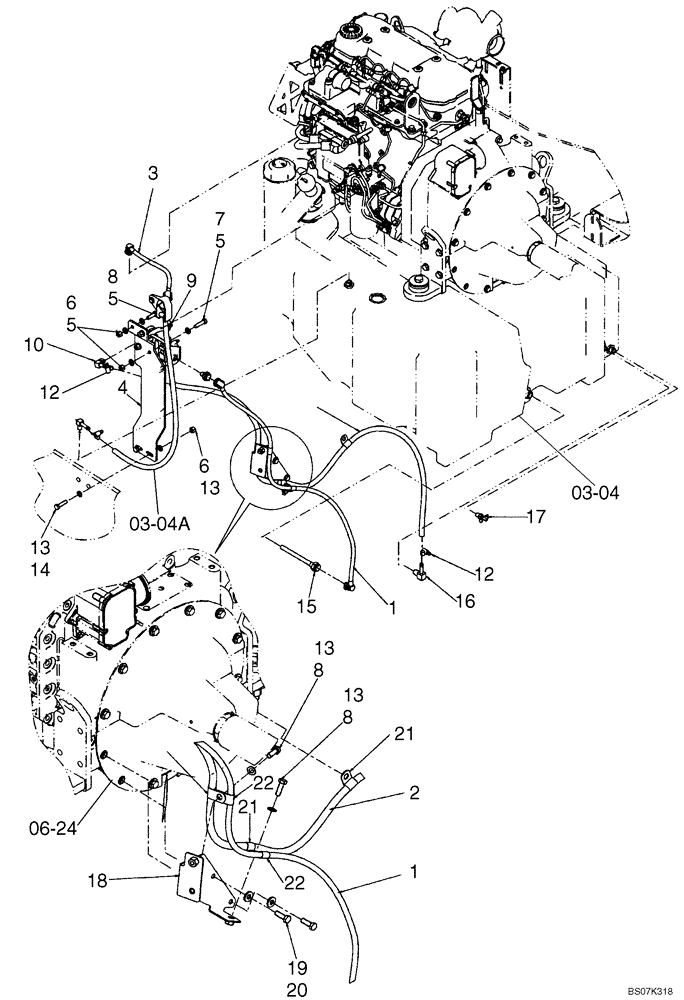

Запчасти Case 521E (03-01) - FUEL LINES (03) - FUEL SYSTEM

1

87620436

TUBE,12.5 mm OD x 1096 mm L

Fuel Tank to Prefilter, 1096 mm (43 - 9/64 in)

1шт.

2

87668409

FUEL HOSE

Fuel Tank Return

1шт.

3

87620439

PLASTIC-RUBBER TUBE,12.5 mm OD x 453 mm L

Prefilter to Engine, 453 mm (17 - 27-32 in)

1шт.

4

87620435

BRACKET

Fuel Prefilter Mounting

1шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

9

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

2шт.

10

87400460

90 ELBOW

1шт.

12

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

14

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

15

8602537

TUBE,12mm OD x 171mm L

1шт.

16

87017042

FITTING,90 Degree, 3/8" Hose x 3/8" NPTF Beaded

1шт.

17

217-92

COCK

Fuel Tank

1шт.

18

87704890

BRACKET

Fuel Line

1шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

20

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

21

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

3шт.

22

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.
