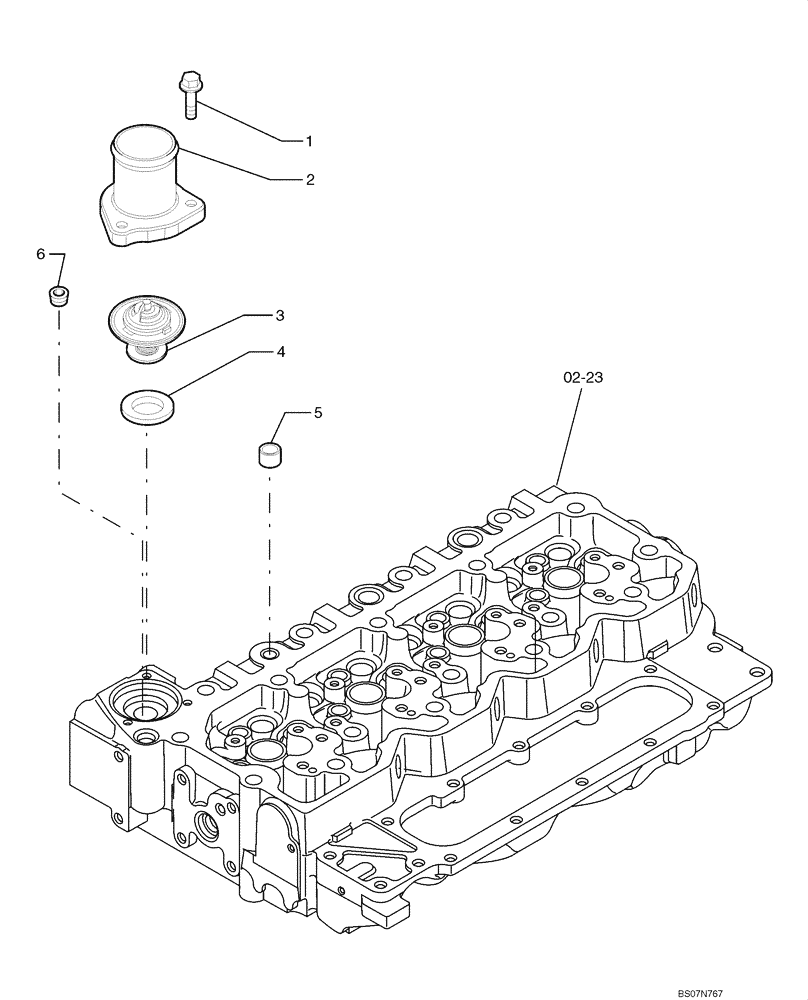

Запчасти Case 521E (02-40) - THERMOSTAT - ENGINE COOLING SYSTEM (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 7

1шт.

1

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

2

4895131

HOUSING

1шт.

3

2856543

THERMOSTAT

ASSY. Incl. Ref. 4

1шт.

4

2852473

GASKET,53.62mm ID x 59.72mm OD x 4.01mm Thk

1шт.

5

4893036

PIPE PLUG,3/4"-14 NPTF

Alternate part

1шт.

5

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

Alternate part

1шт.

6

4895078

PIPE PLUG,1/2"-14

4шт.

7

2854491

PLUG,Taper Pipe, Hex, 1/4" - 18 x 14.224mm

Engine Coolant Vent, Not Illustrated

1шт.
