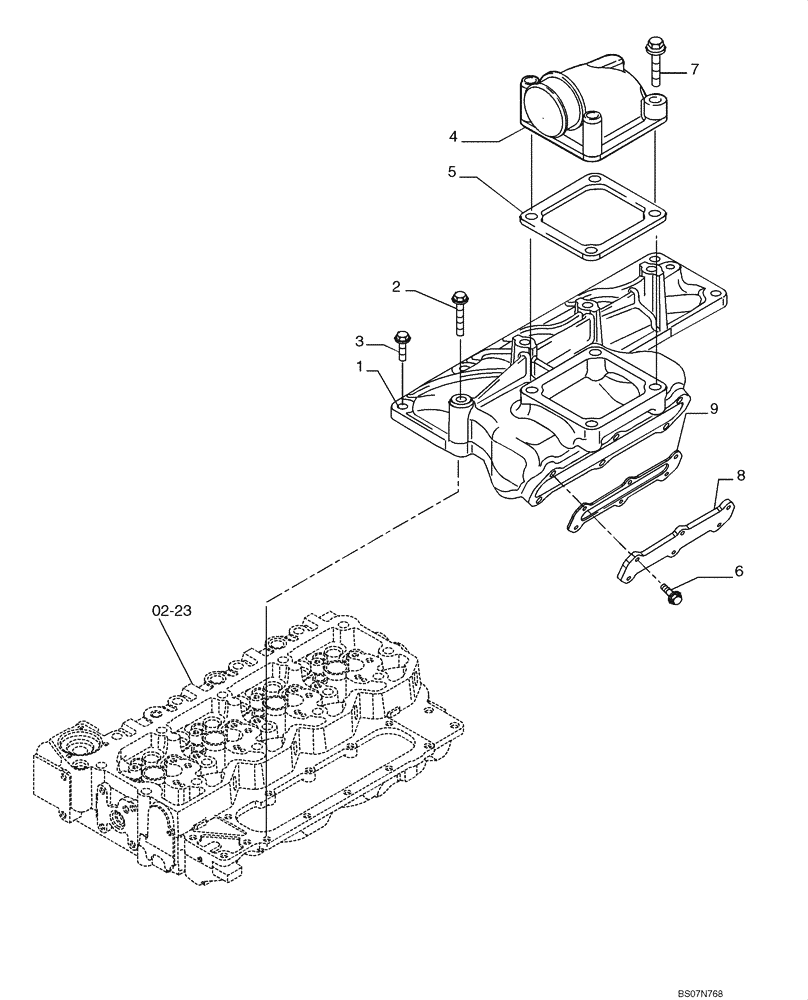

Запчасти Case 521E (02-37) - INTAKE MANIFOLD (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 9

1шт.

1

2855805

INLET MANIFOLD

1шт.

2

4895432

SCREW,M8 x 1.25 x 70mm

1шт.

3

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

6шт.

4

2855809

MANIFOLD

1шт.

5

4899921

GASKET,1.2mm Thk

1шт.

6

2854702

SCREW,Hex Flg, M6 x 20mm

M6 x 20

6шт.

7

2852295

SCREW,Hex, M8 x 1.25 x 40mm

M8 x 40

2шт.

7

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

2шт.

8

2854700

COVER

1шт.

9

2854701

GASKET,0.8mm Thk

1шт.
