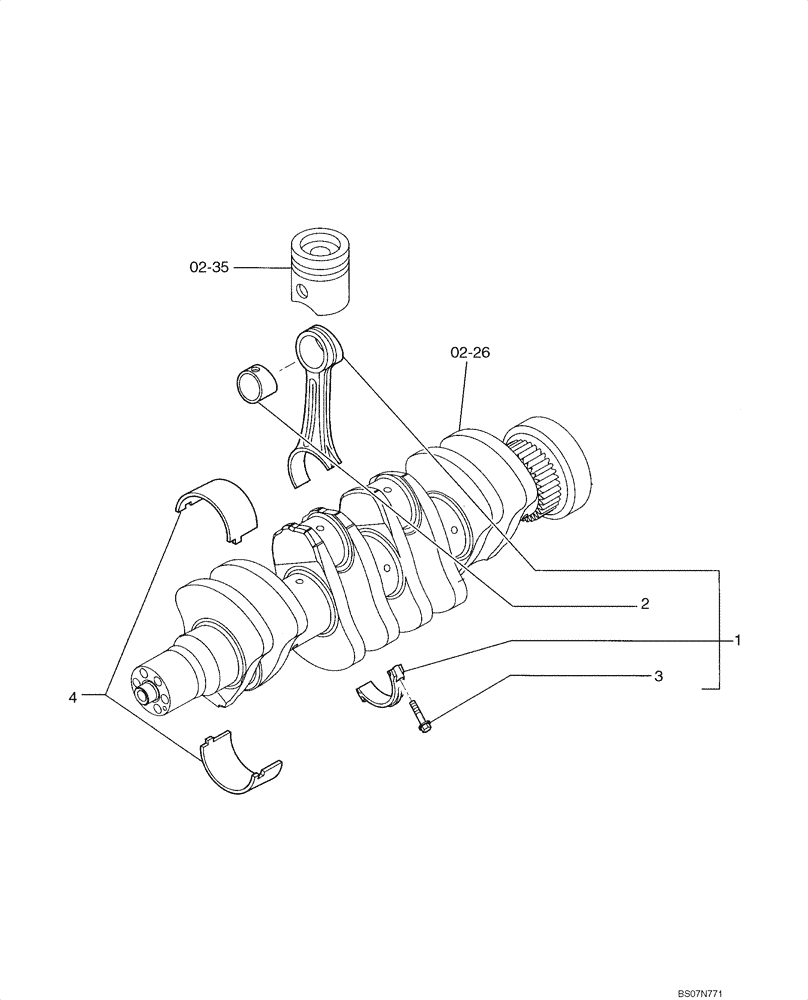

Запчасти Case 521E (02-36) - PISTONS - CONNECTING ROD (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 4

1шт.

84131478

SHORT ENGINE

ENGINE, SHORT, Incl. All Parts On Figures 02-20, 02-21, 02-26, 02-34, 02-35, 02-36

1шт.

1

2831298

CONNECTING ROD

Incl. Ref 2, 3

4шт.

2831298R

REMAN-CONNECTING ROD

521E Tier 3( 1/08 - )

4шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8093882

BEARING SET

4шт.

4

4892715

BEARING LINER

BEARING, CON. ROD

4шт.
