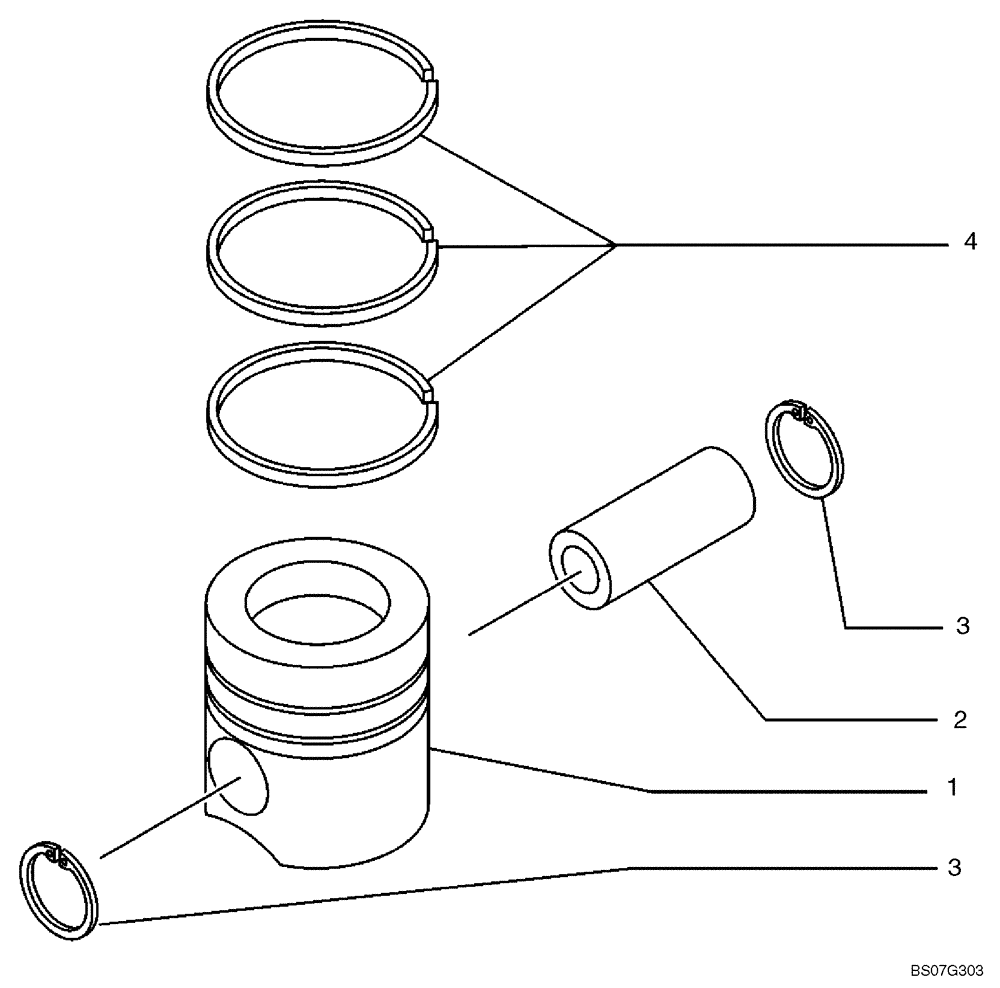

Запчасти Case 521E (02-35) - PISTONS (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 4

1шт.

84131478

SHORT ENGINE

ENGINE, SHORT, Incl. All Parts On Figures 02-20, 02-21, 02-26, 02-34, 02-35, 02-36

1шт.

1

8097543

PISTON & RINGS KIT

4шт.

2

4892712

PISTON PIN,38mm OD x 82mm L

4шт.

3

2854030

SNAP RING,M40.8 OD

8шт.

4

2854603

PISTON RING

RING, PISTON SEALING

1шт.

4

2830158

PISTON RING,95.4mm ID x 104mm OD x 2.39mm Thk

1шт.

4

2852037

SEAL,95.3mm ID x 104mm OD x 4mm Thk

1шт.
