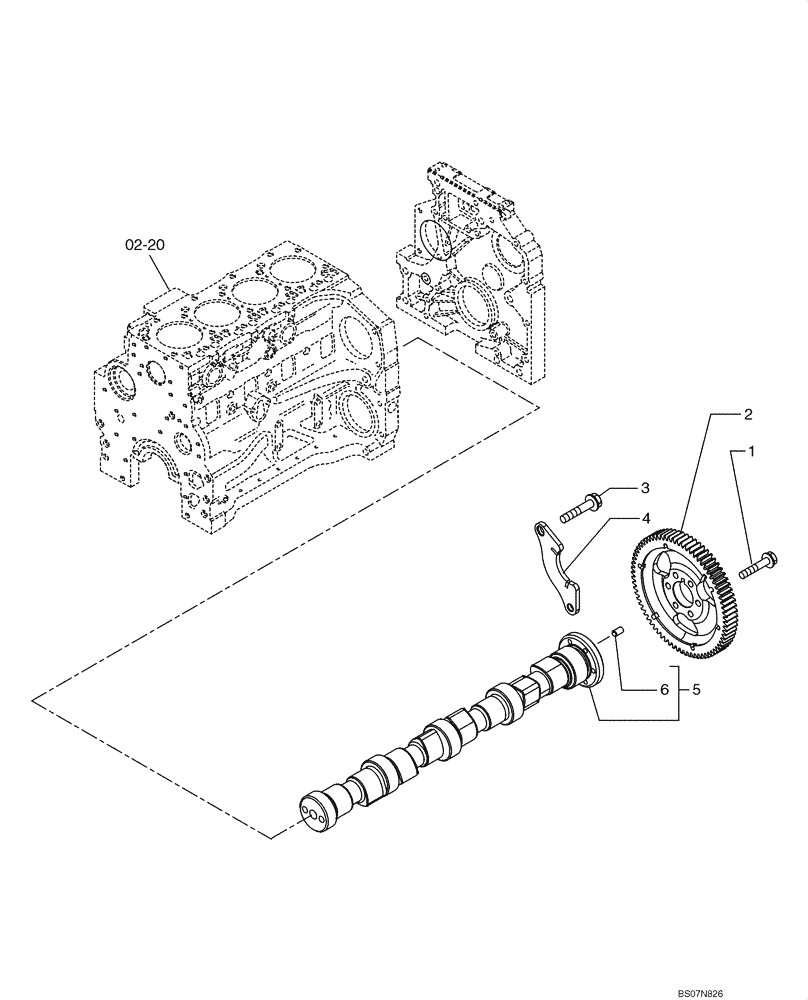

Запчасти Case 521E (02-34) - CAMSHAFT (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 6

1шт.

84131478

SHORT ENGINE

ENGINE, SHORT, Incl. All Parts On Figures 02-20, 02-21, 02-26, 02-34, 02-35, 02-36

1шт.

1

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

6шт.

2

4896381

GEAR

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

4

4897457

SUPPORT

1шт.

5

2855487

CAMSHAFT

Incl. Ref. 6; See Figure 02-20 For Camshaft Bushing

1шт.

2855487R

REMAN-CAMSHAFT

521E TIER 3 (1/08-)

1шт.

2855487C

CORE-CAMSHAFT

Return Number

1шт.

6

4899080

DOWEL,M6 x 8 L

1шт.
