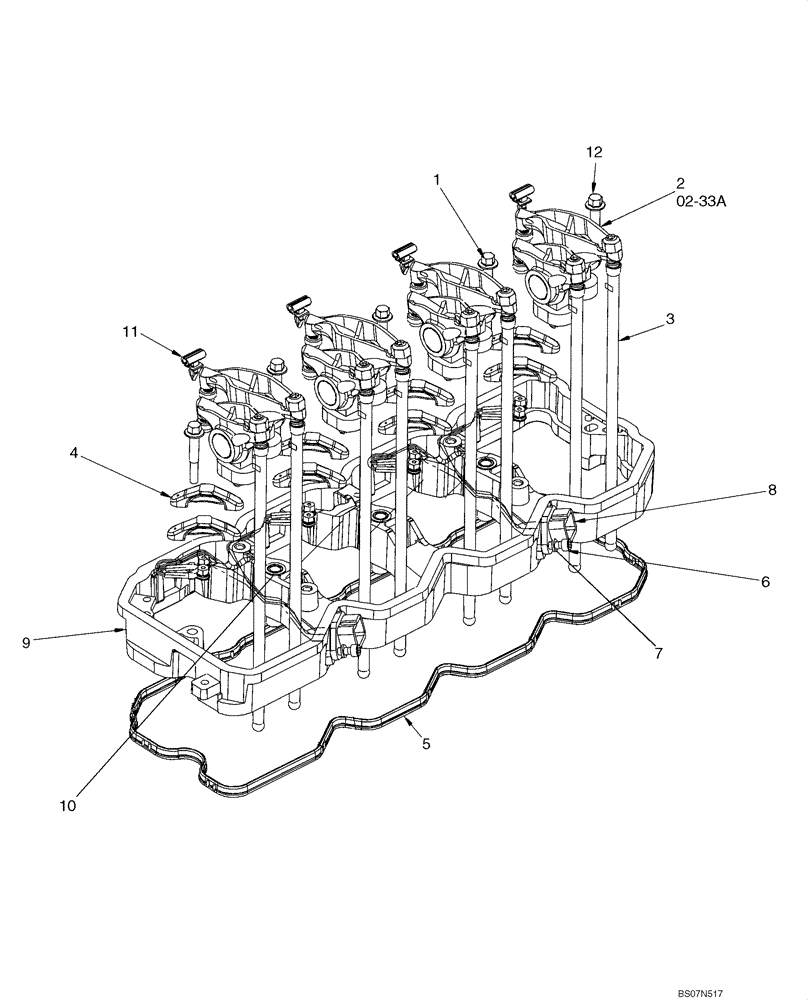

Запчасти Case 521E (02-33) - ROCKER ARMS (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 12

1шт.

1

4895432

SCREW,M8 x 1.25 x 70mm

M8 x 1.25 x 70

3шт.

2

4898717

ROCKER ARM

Assy. See Figure 02-33A

4шт.

3

4895031

PUSH ROD

8шт.

4

2854530

BRIDGE

8шт.

5

2853535

GASKET,10.35mm Thk

Rocker Lever Housing

1шт.

6

2852602

HEX SOC SCREW,M6 x 16mm

Socket Head Cap

2шт.

7

2852776

WASHER,6mm ID x 11mm OD

2шт.

8

2852427

WIRE HARNESS

2шт.

9

4899256

HOUSING

ASSY. Rocker Lever, Incl. Ref. 10

1шт.

10

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

3шт.

11

2852428

WIRE CLAMP,6mm ID

Wire Retaining

4шт.

12

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.
