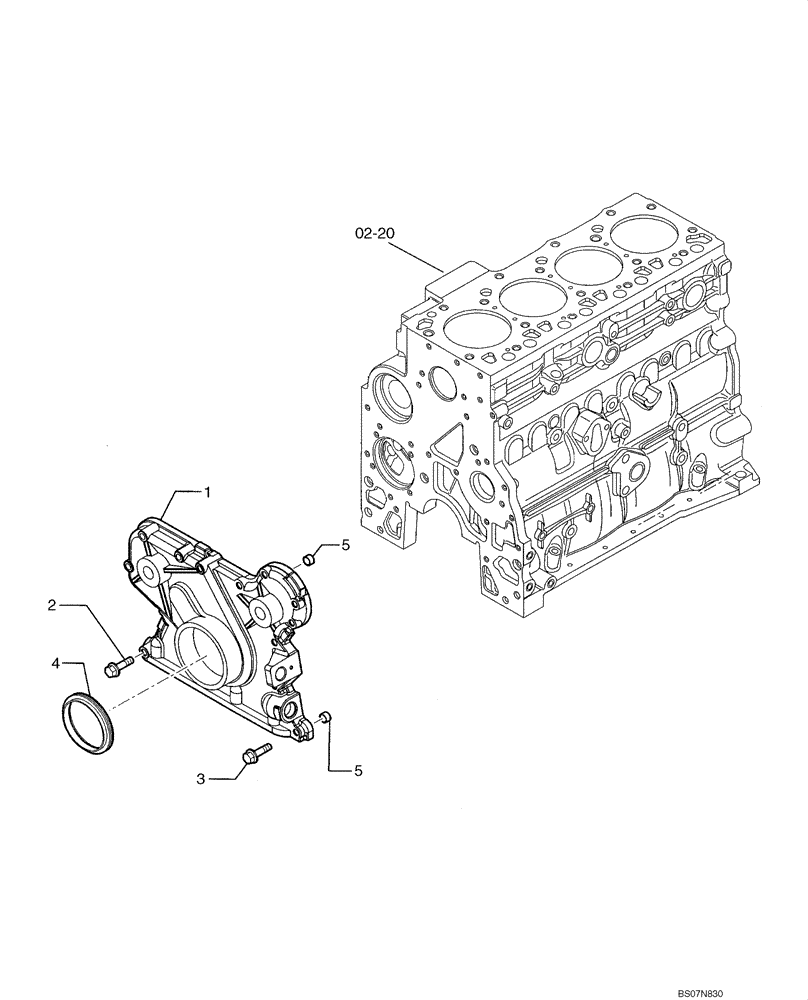

Запчасти Case 521E (02-32) - FRONT GEAR COVER (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 5

1шт.

1

4897025

COVER

Front Gear

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

5шт.

3

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

8шт.

4

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

5

4891209

DOWEL,M13 x 8 L

2шт.
