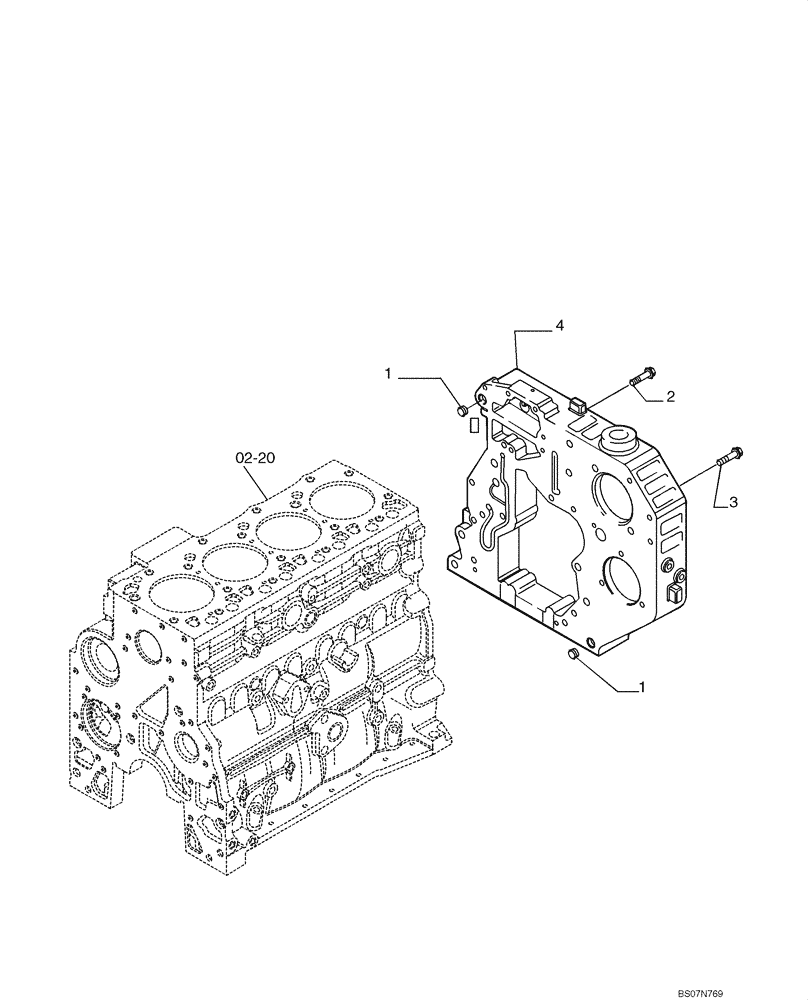

Запчасти Case 521E (02-30) - GEAR COVER - REAR HOUSING (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 4

1шт.

1

4899026

DOWEL,M18 x 10

2шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

2шт.

3

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

3

4896939

SCREW,M10 x 1.5 x 50mm

M10 x 1.5 x 50

3шт.

4

2856954

HOUSING

Rear Gear

1шт.
