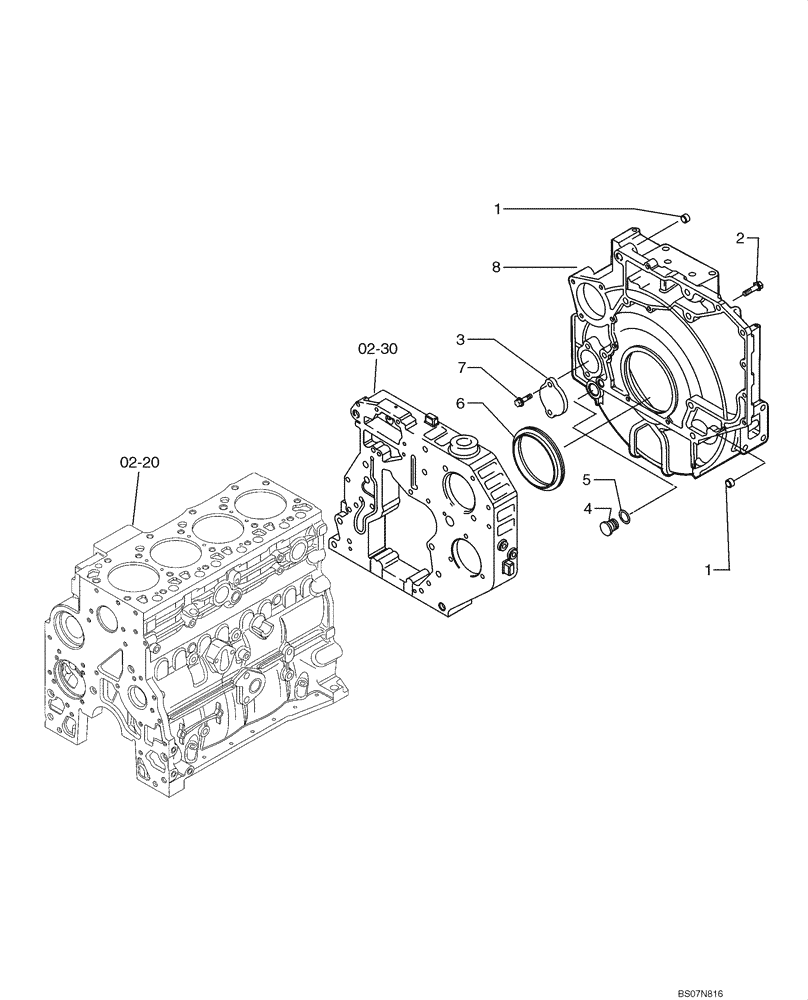

Запчасти Case 521E (02-29) - FLYWHEEL HOUSING (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 9

1шт.

1

4899026

DOWEL,M18 x 10

2шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

2шт.

2

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

7шт.

2

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

6шт.

2

4899064

SCREW

M12 x 1.75 x 120

2шт.

2

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

2

2852865

FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm

M10 x 35

2шт.

2

4897499

SCREW,Hex, M12 x 1.75 x 110mm

Flange, M12 x 110

2шт.

3

4895155

COVER

1шт.

4

4895378

BUTTON PLUG,M29.2

1шт.

5

4895379

O-RING,21.82mm ID x 3.53mm Width

1шт.

6

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

7

4899143

SCREW,Hex Flg, M10 x 1.5 x 140

1шт.

8

2856957

HOUSING

Flywheel

1шт.

9

2852865

FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm

Not Illustrated

1шт.
