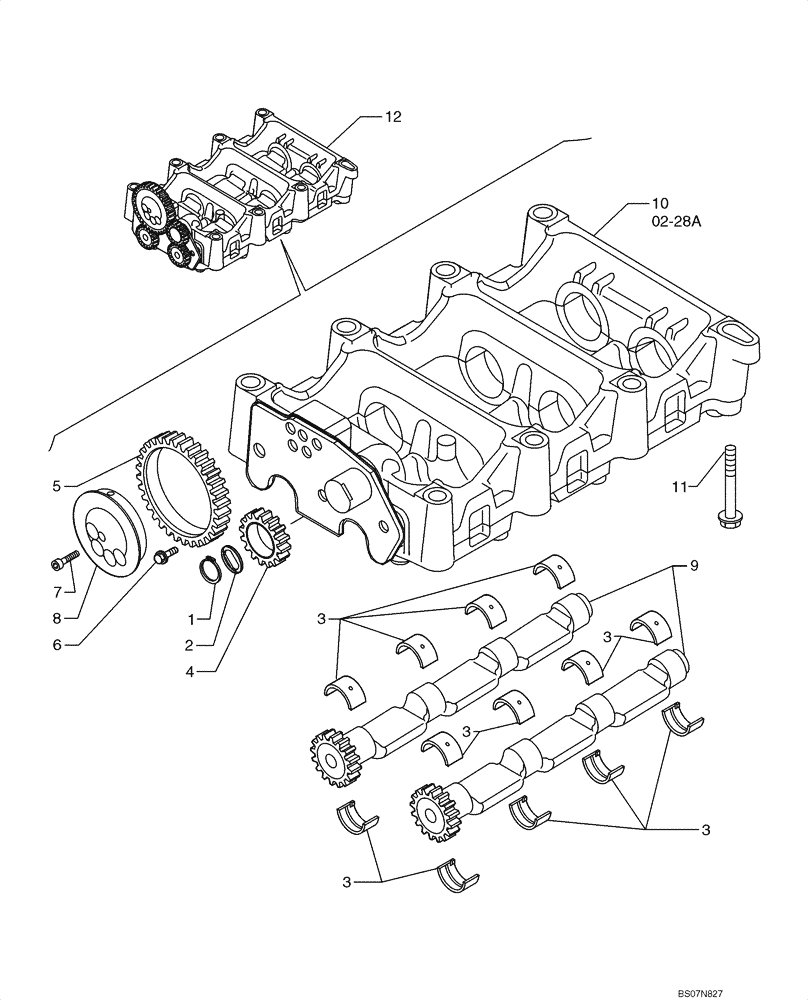

Запчасти Case 521E (02-28) - DYNAMIC BALANCER, GEARS & SHAFTS (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 12

1шт.

1

4897125

SNAP RING,Ext, M23

1шт.

2

2855753

THRUST PLATE

1шт.

3

8093883

SET OF STD MAIN BRGS

16шт.

4

4897048

IDLER GEAR

1шт.

5

4896947

IDLER GEAR

1шт.

6

4895586

SCREW,Hex, Flg Hd, M8 x 16

3шт.

7

2830433

HEX SOC SCREW

5шт.

8

2831031

IDLE SHAFT

1шт.

9

2831354

SHAFT

2шт.

10

2855744

HOUSING

See Figure 02-28A

1шт.

11

4899109

SCREW,Hex, M10 x 1.5 x 80

7шт.

11

4897934

SCREW,Hex, Flg Hd, M10 x 100

1шт.

12

2855743

BALANCER

Incl. 1 - 10

1шт.
