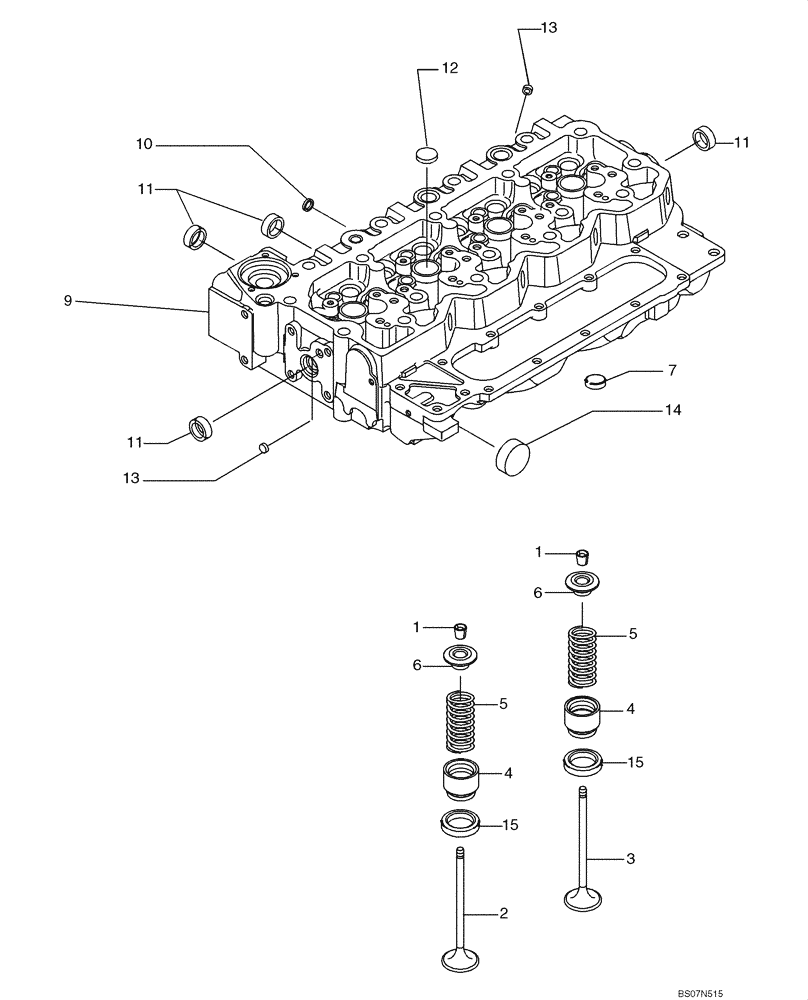

Запчасти Case 521E (02-24) - CYLINDER HEAD - ASSEMBLY (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 15

1шт.

1

4899081

ROCKER ARM COTTER

32шт.

2

4895051

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

8шт.

3

4895052

STD INLET VALVE

STD ENGINE INLET VALVE Intake

8шт.

4

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

Valve Stem Seal

16шт.

5

2831473

VALVE SPRING,Compression, 18.8mmOD x 45.2mm L

16шт.

6

4895074

CUP,18mm ID

Retainer

16шт.

7

4893036

PIPE PLUG,3/4"-14 NPTF

3шт.

9

2831266

CYLINDER HEAD,4 Cylinders

Assy. Incl. Refs. 9, 11 - 15

1шт.

9

47507108R

REMAN-CYLINDER HEAD

Completey Assembled With Valves

1шт.

9

47507108C

CORE-HYD CYLINDER

Return Number

1шт.

9

NSS

NOT SOLD SEPARAT

Cylinder Head

1шт.

10

4895408

PLUG,0.511" L

.511" OD; If Used

2шт.

11

4895085

EXPANSION PLUG,25.74mm

OD

9шт.

12

4895089

PLUG,0.886" L

.886" OD

7шт.

13

4895406

EXPANSION PLUG,9.8mm OD

5шт.

14

4895407

EXPANSION PLUG,38.28mm OD

1шт.

15

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

16шт.
