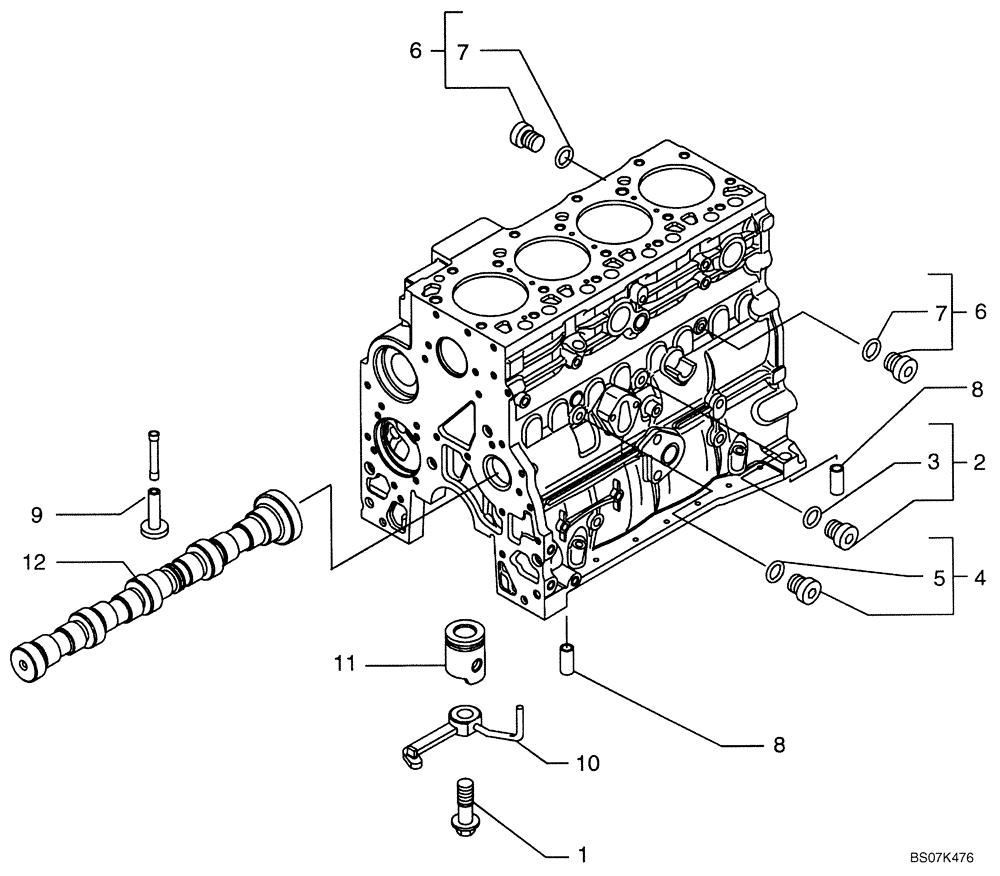

Запчасти Case 521E (02-21) - CYLINDER BLOCK - PLUG ASSY (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 12

1шт.

84131478

SHORT ENGINE

ENGINE, SHORT, Incl. All Parts On Figures 02-20, 02-21, 02-26, 02-34, 02-35, 02-36

1шт.

1

4894218

SCREW,Special, M8 x 20

4шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

Incl. Ref. 3

1шт.

3

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

4

4899009

PLUG,M10 x1

Incl. Ref. 5

1шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl. Ref. 7

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

4891226

TAPPET

8шт.

10

2852202

NOZZLE, PISTON COOLI

Incl. Ref. 1

4шт.

11

REF

INSTRUCTION

PISTON; See Figure 02-35

1шт.

12

REF

INSTRUCTION

CAMSHAFT; See Figure 02-34

1шт.
