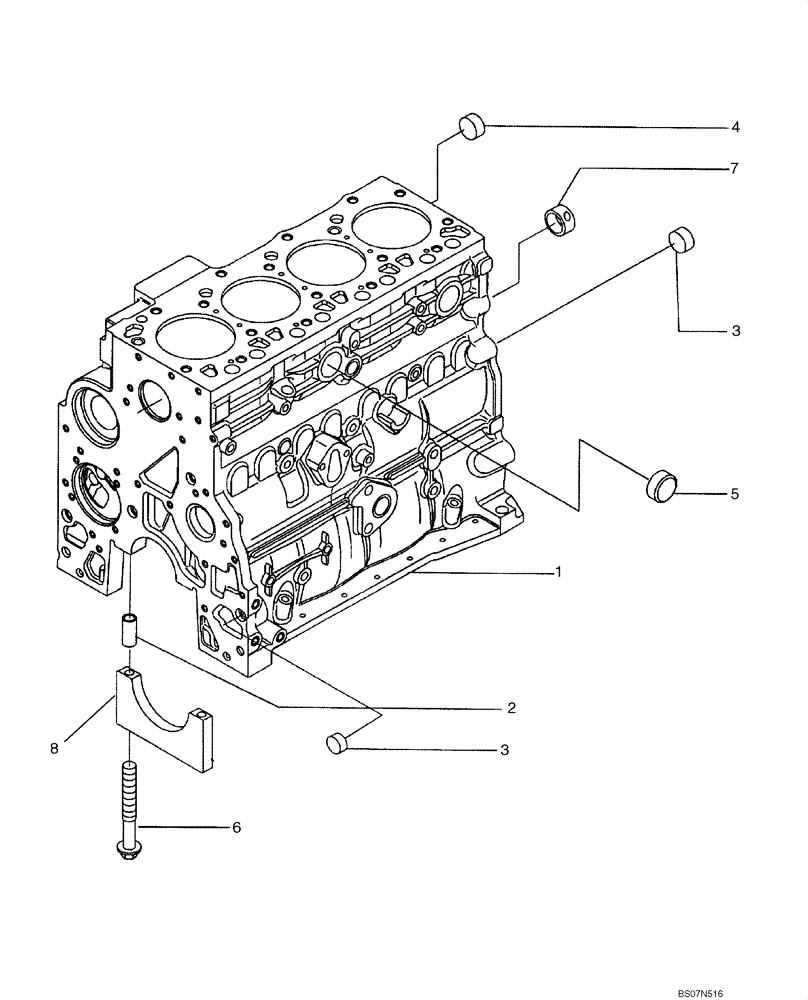

Запчасти Case 521E (02-20) - CYLINDER BLOCK (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 8

1шт.

84131478

SHORT ENGINE

ENGINE, SHORT, Incl. All Parts On Figures 02-20, 02-21, 02-26, 02-34, 02-35, 02-36

1шт.

2830082

CYLINDER BLOCK,4 Cylinders

ASSY, Incl. Refs. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER BLOCK

1шт.

2

4899026

DOWEL,M18 x 10

10шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

4шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

2шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

Camshaft

1шт.

8

4895919

BEARING ASSY,86.1mm D

Main; Not Serviced Separately

4шт.

8

4895921

BEARING ASSY,86.1mm D

Main; Not Serviced Separately

1шт.
