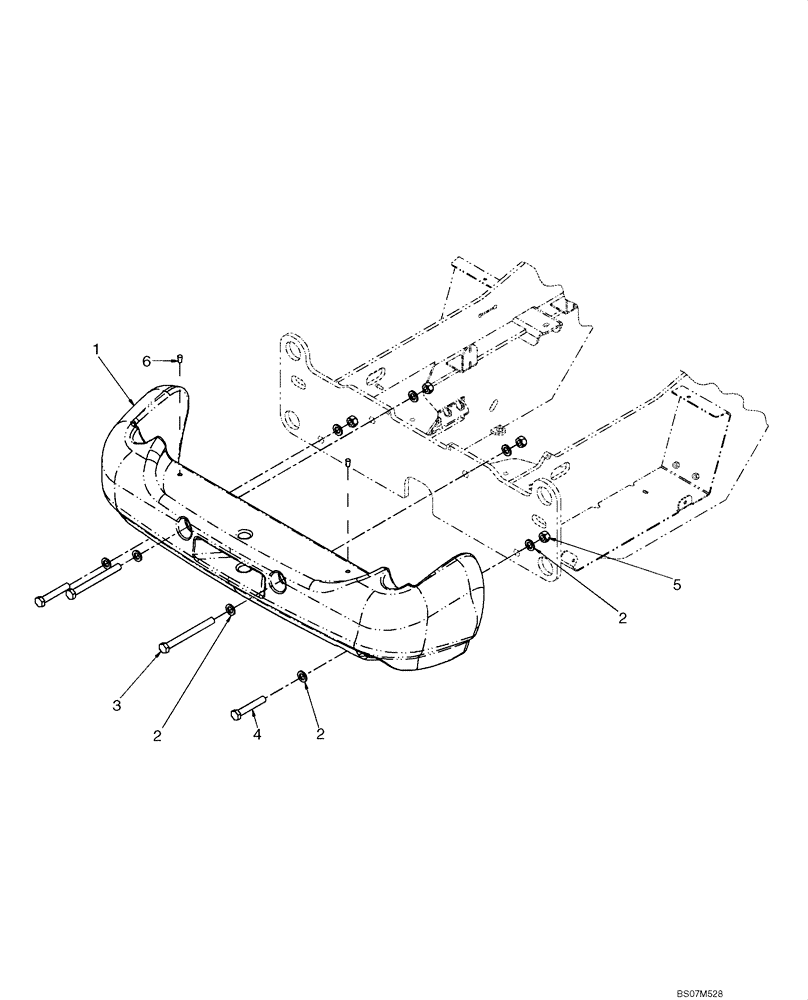

Запчасти Case 521E (09-92A) - COUNTERWEIGHT - HEAVY DUTY (09) - CHASSIS

REF

INSTRUCTION

HEAVY DUTY COUNTERWEIGHT

1шт.

1

87446241

WEIGHT

Heavy Duty, 885 kg (1950 lb)

1шт.

2

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

8шт.

3

827-24250

BOLT,Hex, M24 x 3 x 250mm, Cl 10.9

2шт.

4

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

2шт.

5

829-1424

NUT,M24, Cl 10

4шт.

6

87308200

PLASTIC PLUG

2шт.
