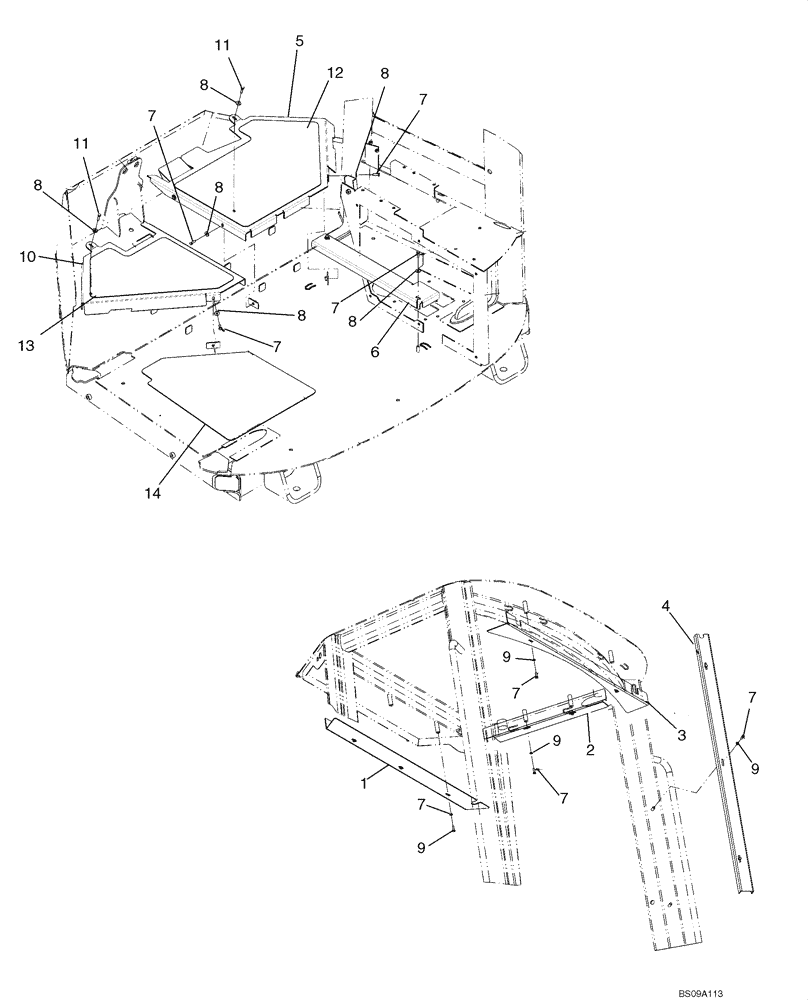

Запчасти Case 521E (09-89) - CANOPY - INTERIOR TRIM (09) - CHASSIS

1

87752885

COVER

Roof Harness, Front

1шт.

2

87752886

COVER

Roof Harness, LH

1шт.

3

87752887

COVER

Roof Harness, Rear

1шт.

4

87752888

COVER

B-Post

1шт.

5

87752901

COVER

Floor

1шт.

6

87752868

COVER

Floor

1шт.

7

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

16шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

9

892-11006

LOCK WASHER,M6

10шт.

10

87752896

COVER

Floor

1шт.

11

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

12

84125376

ANTI-SKID STRIP

1шт.

13

84125377

ANTI-SKID STRIP

1шт.

14

84125378

ANTI-SKID STRIP

1шт.
