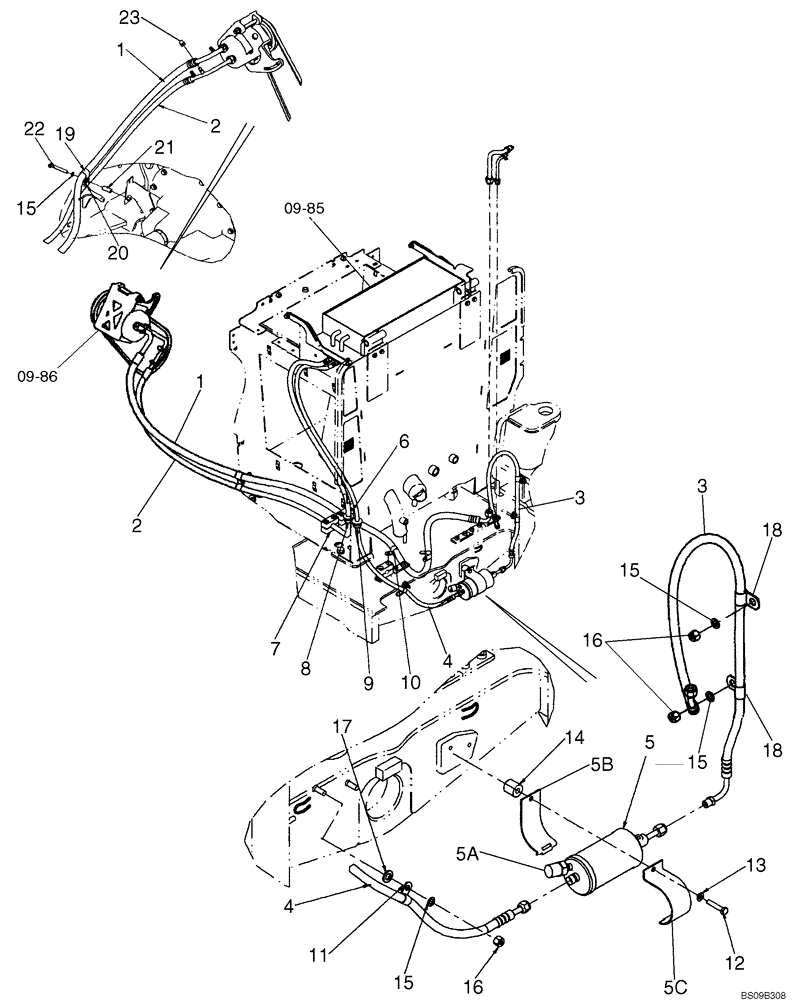

Запчасти Case 521E (09-87) - AIR CONDITIONING HOSES (09) - CHASSIS

1

87669779

HOSE ASSY.

Cab to Compressor; 2547 mm (100 - 1/4 in)

1шт.

1

84191327

A/C HOSE

Option, Includes Maintenance Port on one end and Pressure Fitting on the Other

1шт.

1a

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

Condensor End; Not Illustrated

1шт.

2

87669780

HOSE ASSY.

Compressor to Condensor; 2847 (112 - 3/32 in); Incl. Ref. 2A

1шт.

2a

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

Condensor End; Not Illustrated

1шт.

3

87634119

HOSE ASSY.

Dryer to Cab; 1336 (52 - 19/32 in); Incl. Refs. 3A, 3B

1шт.

3a

452005C1

O-RING

Dryer End; Not Illustrated

1шт.

3b

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

Cab End; Not Illustrated

1шт.

4

86994112

HOSE

Condensor to Dryer; 2000 mm (78 - 3/4 in); Incl. Ref. 4A

1шт.

4a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

Condensor, Dryer Ends; Not Illustrated

2шт.

5

76047001

RECEIVER-DRYER

A/C Dryer, has a place for the pressure switch on the dryer

1шт.

5

295006A1

RECEIVER-DRYER

A/C Dryer, does not have a place for the pressure switches on the dryer.

1шт.

5a

76047002

SENSOR

A/C

1шт.

5b

76053044

CLAMP BRACKET

1шт.

5c

76047004

BRACKET

1шт.

6

367489A1

BLOCK

Tube Mounting

1шт.

7

379374A1

BLOCK

Tube Mounting

1шт.

8

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

9

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

10

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

2шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

12

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

14

8500571

SPACER,10mm ID x 25.4mm OD x 25mm L

1шт.

15

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

17

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

18

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

19

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

20

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

21

L126936

SPACER

1шт.

22

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

23

87720368

CAP

A/C Hose

1шт.
