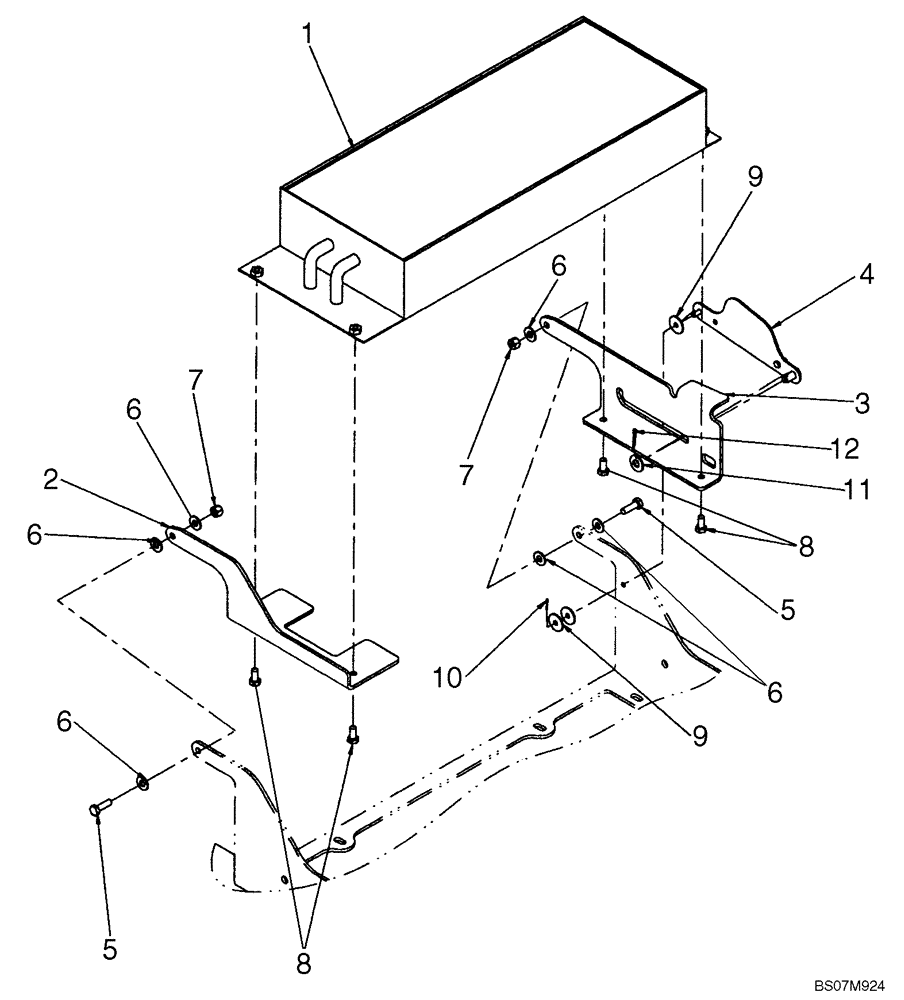

Запчасти Case 521E (09-85) - AIR CONDITIONING - CONDENSER (09) - CHASSIS

REF

INSTRUCTION

AIR CONDITIONING CONDENSER MOUNTING

1шт.

1

383912A1

CONDENSER

Air Conditioning

1шт.

2

382199A3

BRACKET

RH Condenser Mount

1шт.

3

398883A2

BRACKET

LH Condenser Mount

1шт.

4

398744A2

BRACKET

Prop Bar

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

8

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

9

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

3шт.

10

733-1610

COTTER PIN,M1.6 x 10

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

12

733-3220

COTTER PIN,M3.2 x 20

1шт.
