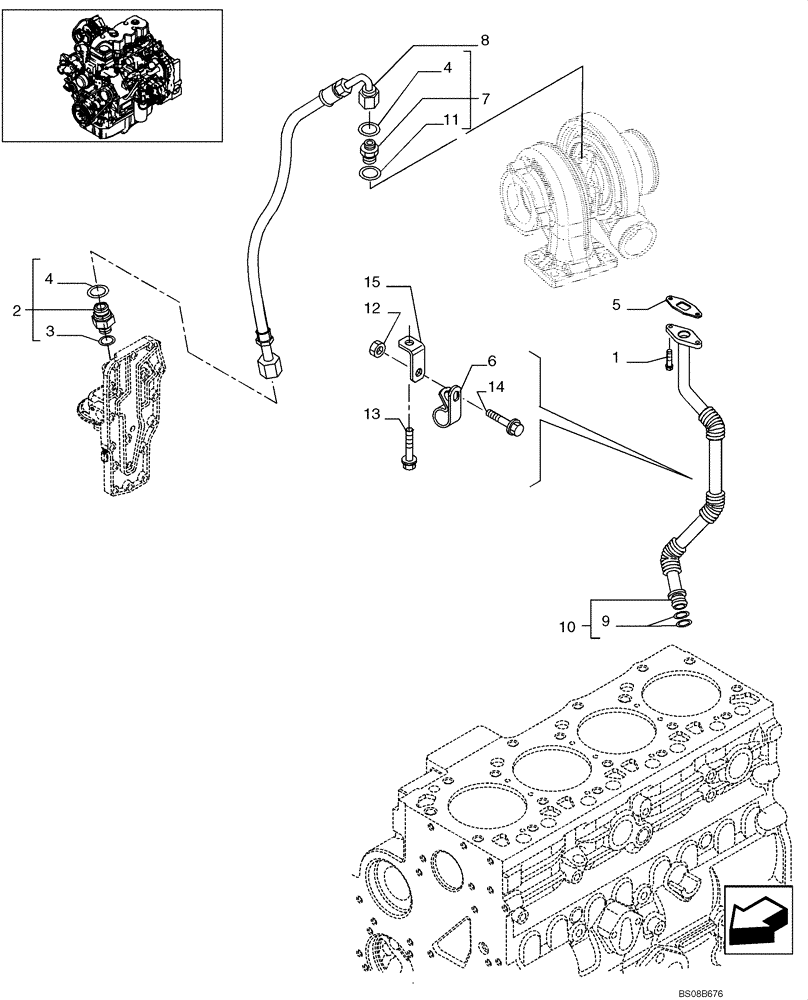

Запчасти Case 521E (02-16) - TURBOCHARGER - DRAIN LINE (02) - ENGINE

1

2852101

FLANGE BOLT,Hex, M6 x 16mm

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

Incl. Refs. 3, 4

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

2шт.

5

4899467

GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

Incl. Refs. 4, 11

1шт.

8

2852195

HYDRAULIC HOSE,6.4mm ID x 461mm L

Oil Supply

1шт.

9

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

10

2856979

PIPE

Turbo Feed, Incl. Ref. 9

1шт.

11

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.

12

2852197

FLANGE NUT,M6 x 1

1шт.

13

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

14

2852101

FLANGE BOLT,Hex, M6 x 16mm

1шт.

15

2830887

BRACKET

1шт.
