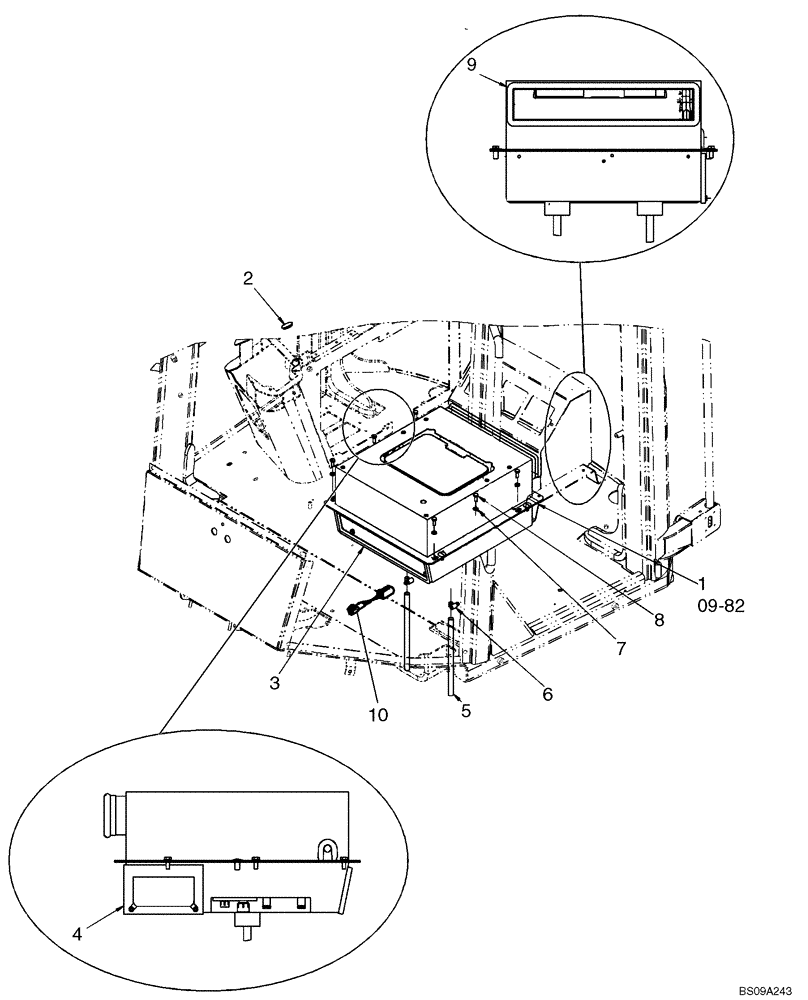

Запчасти Case 521E (09-81) - AIR CONDITIONING - MOUNTING (09) - CHASSIS

REF

INSTRUCTION

UNITS WITH HEATER AND AIR CONDITIONING

1шт.

1

87706152

AIR CONDITIONER

HVAC A/C And Heater Unit; Production Number Only, Order Component Parts; See Figure 09-82

1шт.

2

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

3

76303496

GASKET,10mm Thk

HVAC Front Air

1шт.

4

76303497

GASKET

HVAC Air Intake

1шт.

5

87587637

PLASTIC-RUBBER TUBE

2шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

9

87651073

SEAL

1шт.

10

87727867

WIRE HARNESS

AC Jumper

1шт.
