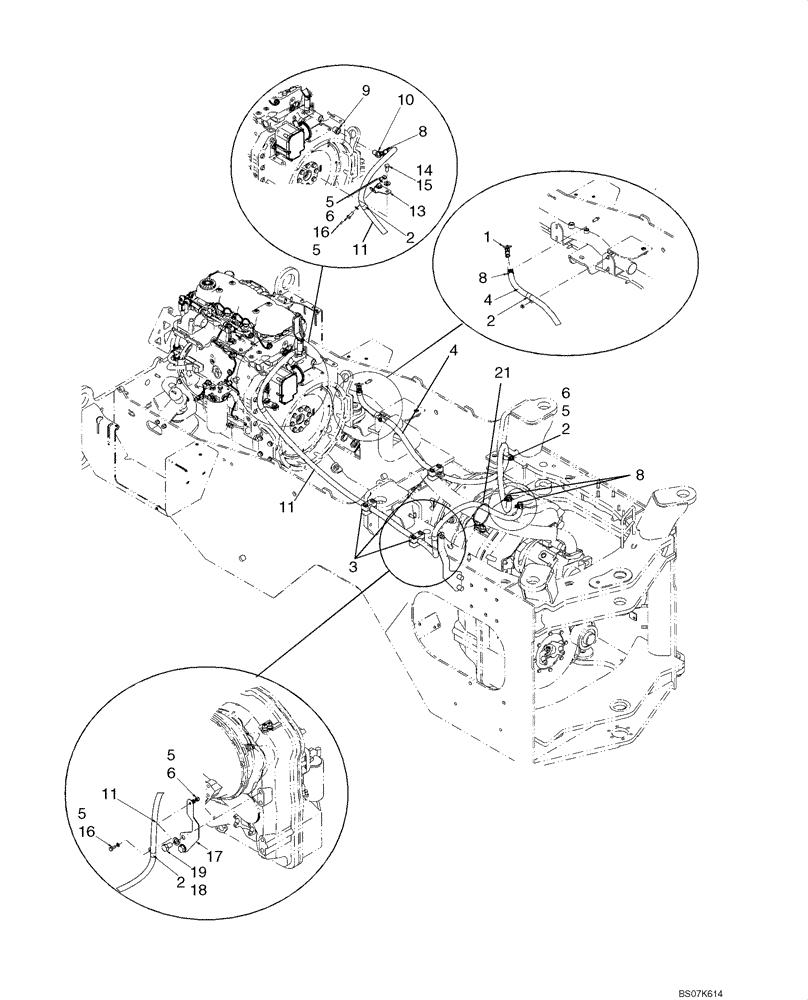

Запчасти Case 521E (09-80) - HEATING HOSES (09) - CHASSIS

1

301803R1

SHUT-OFF VALVE

1шт.

2

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

4шт.

3

367489A1

BLOCK

3шт.

4

436522A1

HEATER HOSE,15.9mm ID x 2134mm L

1шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

5шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

8

1954736C1

HOSE CLAMP,#24

4шт.

9

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

1шт.

10

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

11

1974655C1

HEATER HOSE,15.5mm ID x 2642mm L

1шт.

13

87669774

SUPPORT

Heater Supply

1шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

17

87669775

SUPPORT

Heater/AC

1шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

19

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

2шт.

21

19-135

CABLE TIE

CABLE STRAP

1шт.
