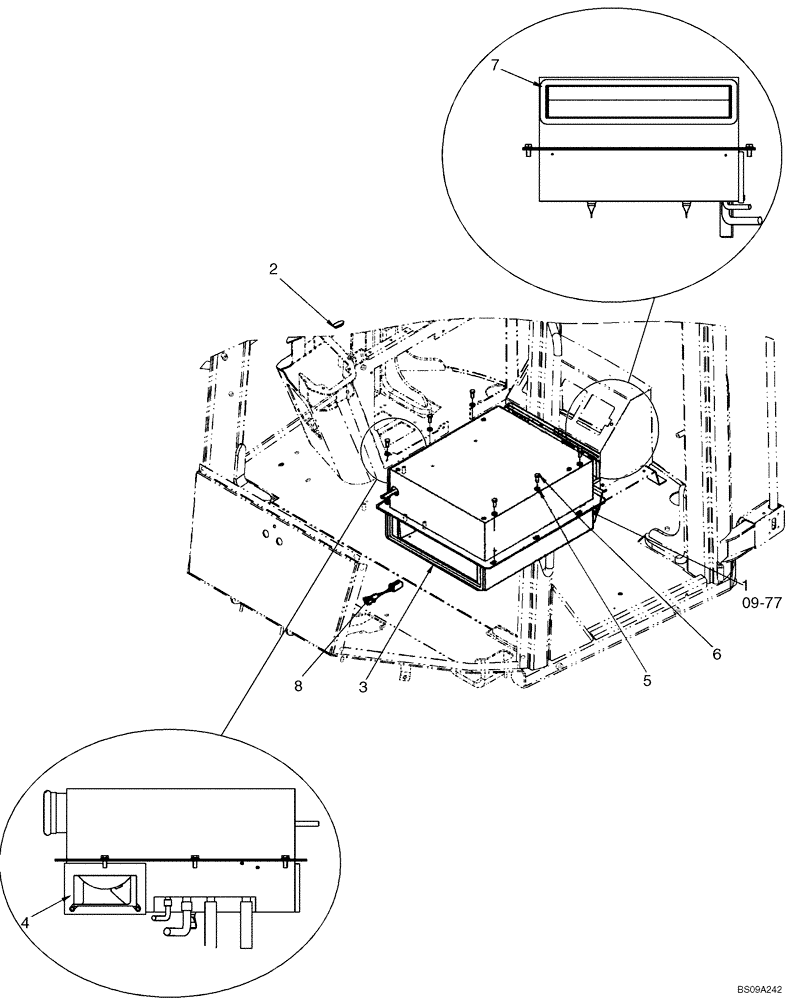

Запчасти Case 521E (09-76) - HEATER - MOUNTING (09) - CHASSIS

REF

INSTRUCTION

UNITS WITH HEATER ONLY

1шт.

1

87706153

HEATER

Heater Unit; Production Number Only, Order Component Parts; See Figure 09-77

1шт.

2

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

3

76303496

GASKET,10mm Thk

1шт.

4

76303497

GASKET

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

7

87651073

SEAL

1шт.

8

87727867

WIRE HARNESS

AC Jumper

1шт.
