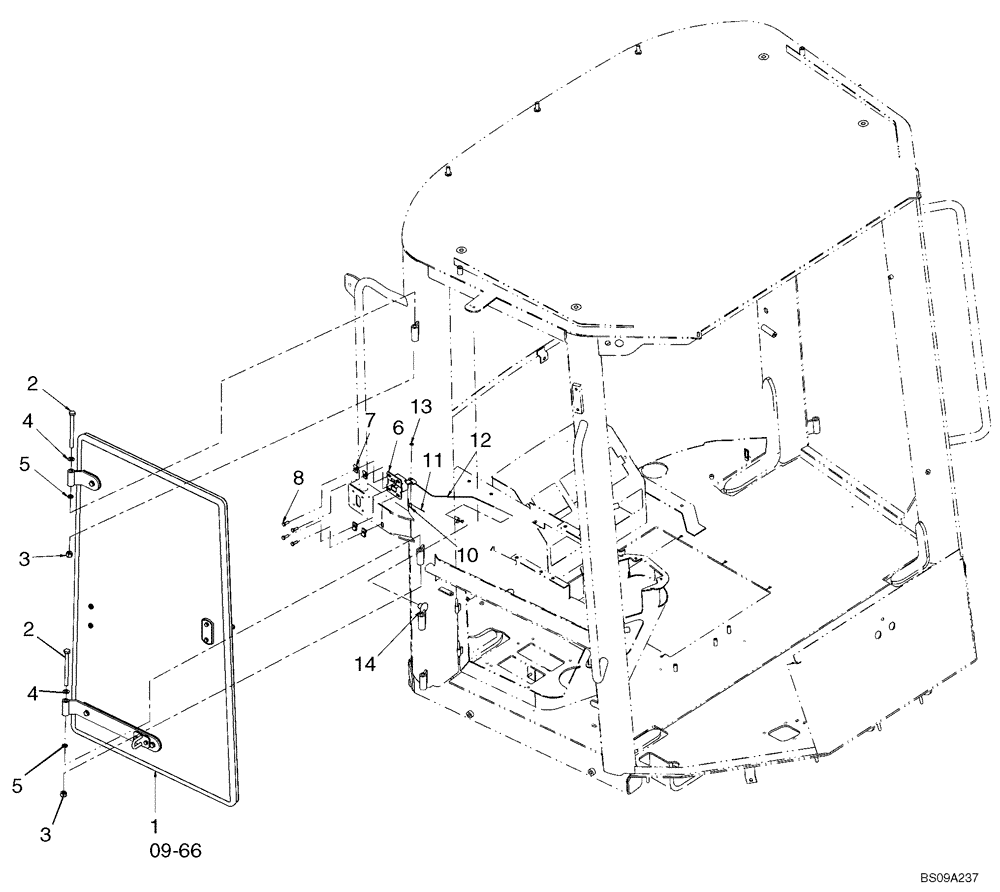

Запчасти Case 521E (09-65) - CAB - WINDOW, RIGHT-HAND-UPPER - MOUNTING (09) - CHASSIS

1

REF

INSTRUCTION

WINDOW ASSY. See Figure 09-33A

1шт.

2

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

Thrust

2шт.

5

86547919

WASHER,10.3mm ID x 16.1mm OD x 2.1mm Thk

Brass

2шт.

6

4227178

LOCK

Window

1шт.

7

833-40306

SPRING NUT,M6, U

4шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

10

71485274

PIN,5mm OD x 13mm L

Window Latch

1шт.

11

732-1610

COTTER PIN,M1.6 x 10

1шт.

12

76303590

CABLE,330mm L

Window Lock

1шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

14

76303157

KNOB

M6

1шт.
