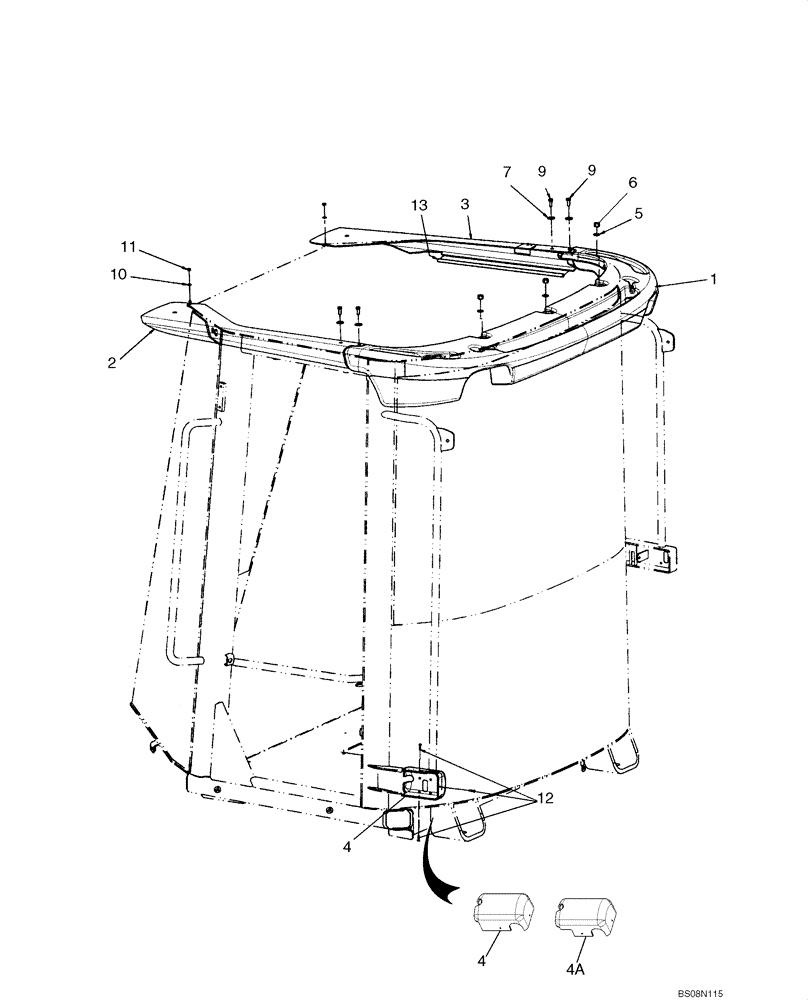

Запчасти Case 521E (09-64) - CAB - EXTERIOR TRIM (09) - CHASSIS

1

76303024

DOOR SILL MOULDING

Rear

1шт.

2

76303194

DOOR SILL MOULDING

Left Front

1шт.

3

76303195

DOOR SILL MOULDING

Right Front

1шт.

4

76303025

COVER

Door Latch; No Longer Available, Order 87493705 Cover, Ref. 4A

1шт.

4a

87493705

COVER

Door Latch

1шт.

5

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 20 x 2 mm

3шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

Replaces Nut 87664047, M10 Cl8, Prev Torq Used On Some Models; Replaces Nut 829-4410, Thin, M10 x 1.5, Cl 05 Used On Some Models

3шт.

7

87664051

WASHER,9mm ID x 24mm OD x 2mm Thk

M9 x 24 x 2

4шт.

9

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

10

87664048

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6.6 x 12 x 1.6 mm

2шт.

11

15896214

NUT,M6, Cl 8

2шт.

12

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

If Used

3шт.

12

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

If Used

3шт.

13

87720305

MOLDING

480 mm Cut From 26-258 Bulk Seal

2шт.
