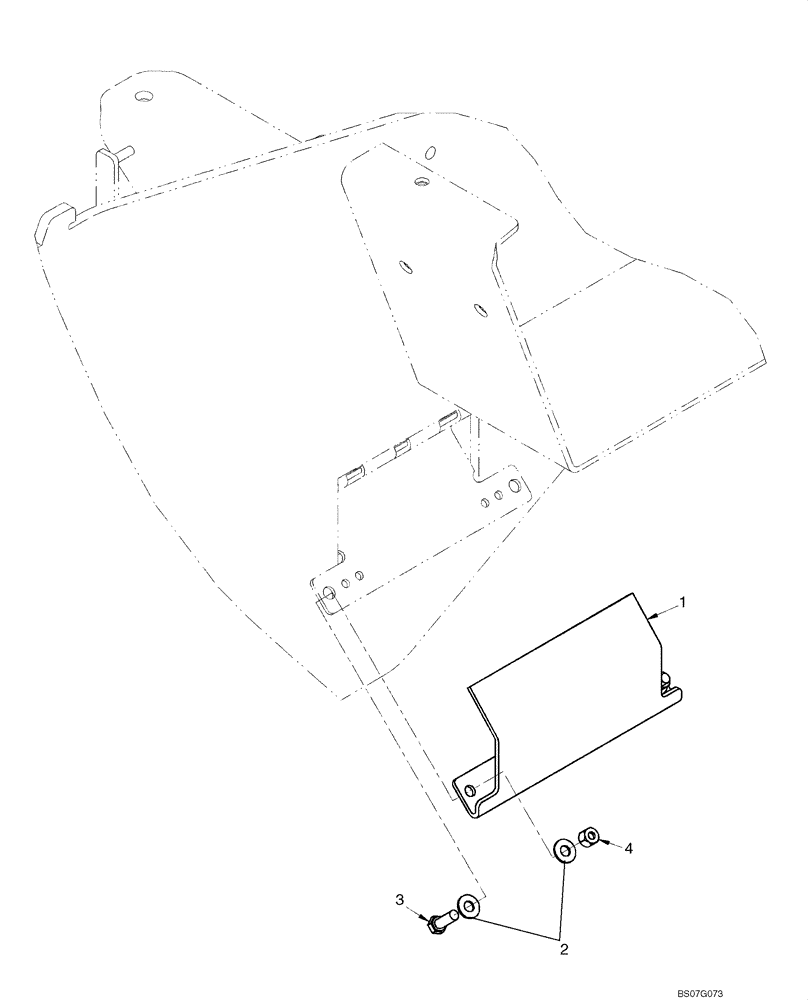

Запчасти Case 521E (02-14) - OIL PUMP, PAN - DRAIN LINE - COVER (02) - ENGINE

REF

INSTRUCTION

FOR OIL PAN DRAIN LINE, SEE FIGURE 02-01

1шт.

1

407632A1

COVER

Remote Drain

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
