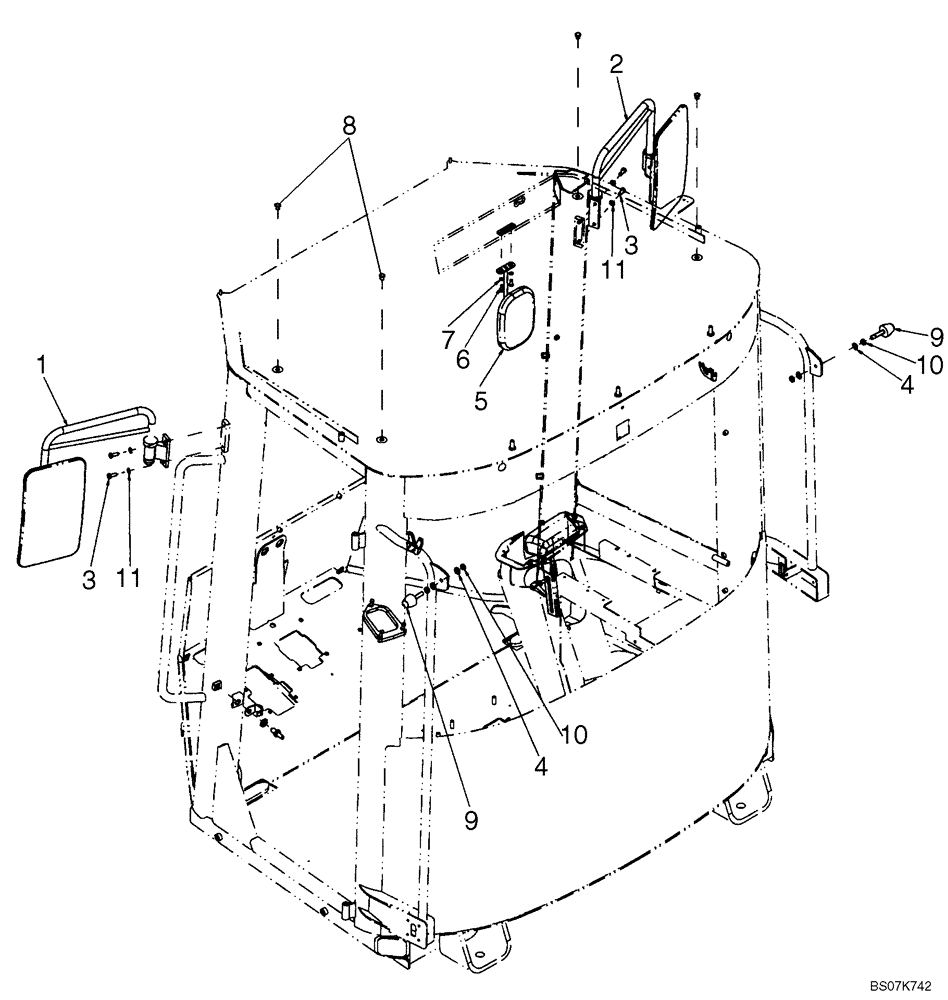

Запчасти Case 521E (09-59) - CAB - MIRRORS (09) - CHASSIS

1

76303266

MIRROR

1шт.

2

76303267

MIRROR

1шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER, M11 x 20 x 2

4шт.

5

76048869

REAR VIEW MIRROR

1шт.

6

297850A1

SCREW,Cross Pan Hd, M6 x 16

2шт.

7

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Flat, M6.6 x 12 x 1.6

2шт.

8

72114876

PLUG

Cab Roof

4шт.

9

76303588

RUBBER BUMPER,M10mm x 47mm L

2шт.

10

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

4шт.

11

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

M9 x 16 x 1.6

4шт.
