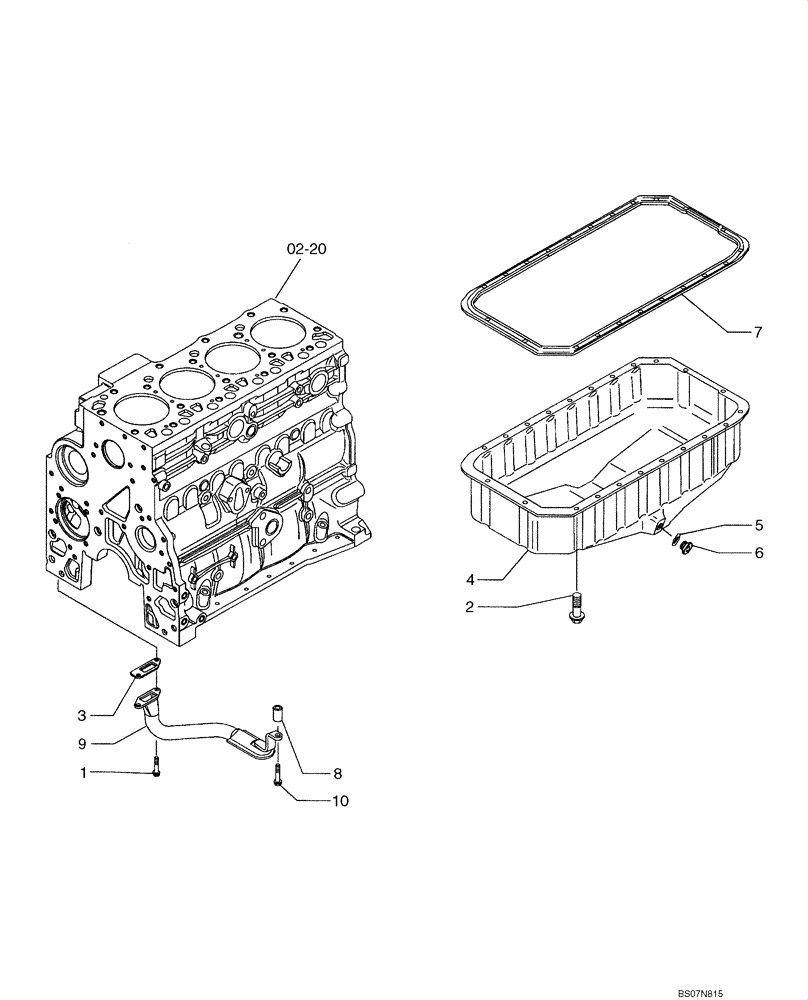

Запчасти Case 521E (02-13) - OIL PUMP, PAN (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 10

1шт.

1

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

22шт.

2

4895489

FLANGE BOLT,Hex, M8 x 1.25 x 110mm

2шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852281

ENGINE OIL PAN

1шт.

5

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Seal

1шт.

6

2856086

PLUG

Oil Pan, Does Not Include Seal, Purchase Seal Separately

1шт.

7

2852012

OIL PAN GASKET SET

1шт.

8

2852016

SPACER,11mm ID x 22mm OD x 39mm L

1шт.

9

2852282

TUBE,211.4, 206.4 mm Length

Tube; Oil Suction, Includes Screen Which Is Not Serviced Separately

1шт.

10

4895538

FLANGE BOLT,Hex, M10 x 1.5 x 120mm

1шт.
