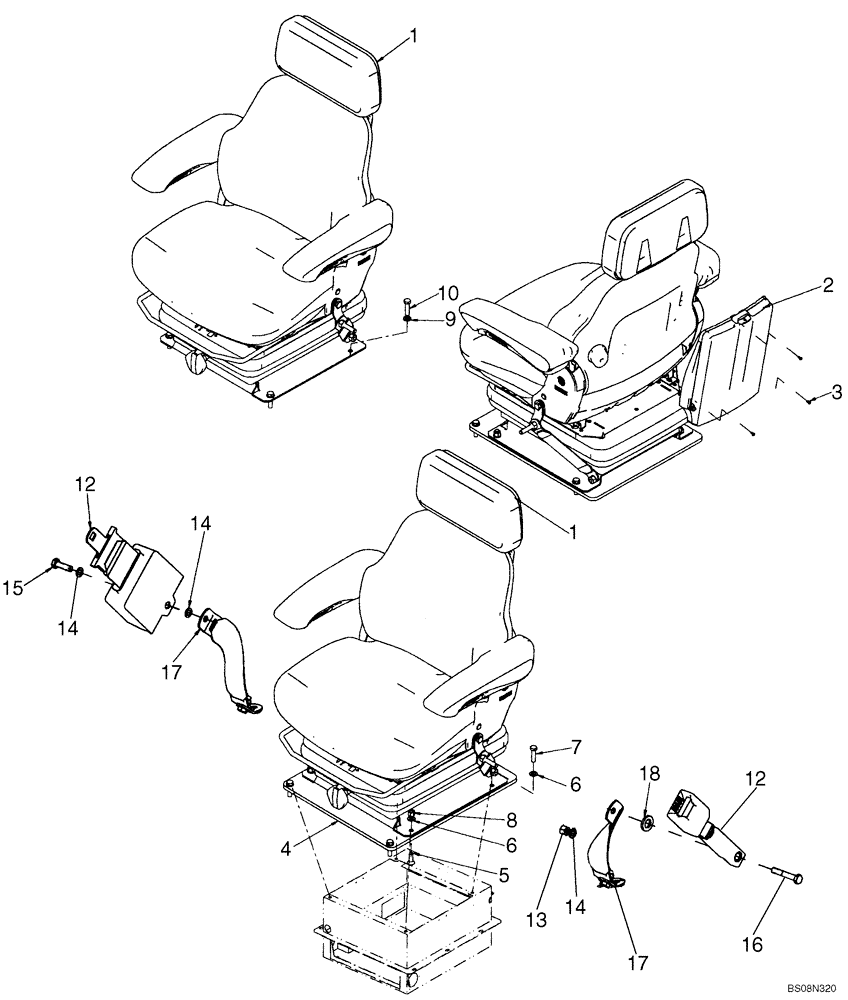

Запчасти Case 521E (09-49) - SEAT - VINYL - MOUNTING/SEAT BELTS (09) - CHASSIS

1

399261A1

DRIVER SEAT

Vinyl, Mechanical; See Figures 09-52, 09-53

1шт.

2

82034977

PLASTIC CASE

1шт.

3

82034863

SCREW,M4 x 8mm

3шт.

REF

INSTRUCTION

VINYL SEAT - CAB MOUNTING

1шт.

4

84132813

PLATE

Spacer

1шт.

5

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

REF

INSTRUCTION

VINYL SEAT - CANOPY MOUNTING

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

REF

INSTRUCTION

SEAT BELT - 76 mm (3 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

12

249117A1

SAFETY BELT ,76.20 mm W

Uses Refs. 12 - 16

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

16

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

17

87545658

KIT

Tether Belt; 2 Belts and Hardware Included

1шт.

18

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.
