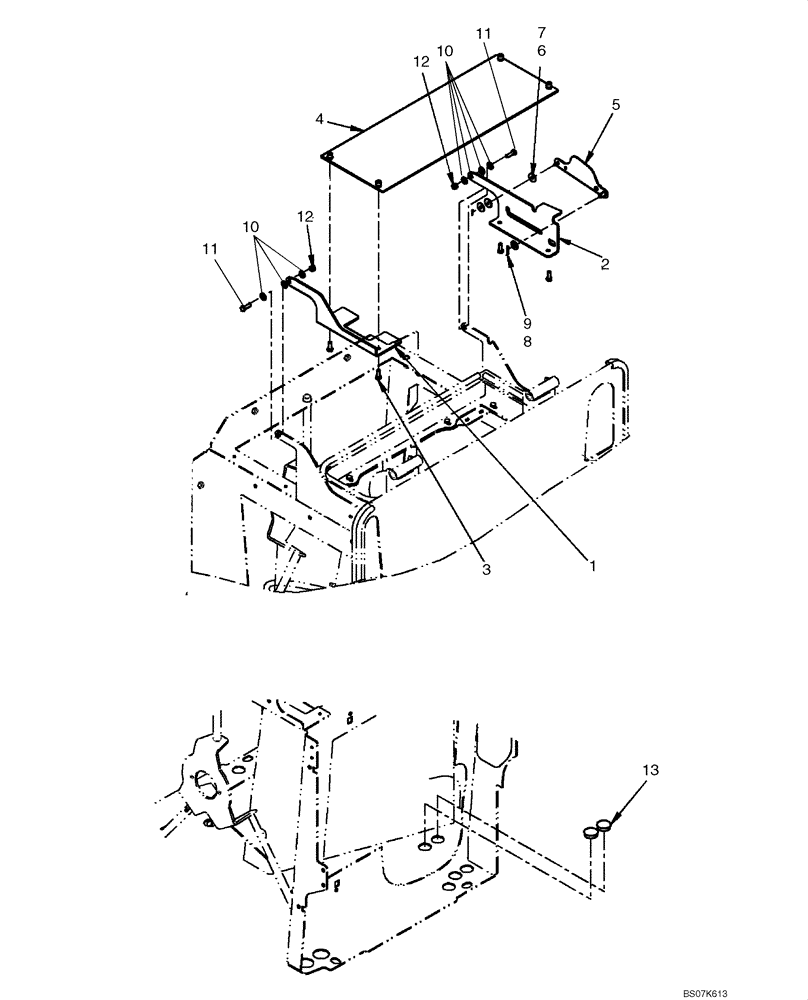

Запчасти Case 521E (09-47) - COVERS - CAB - WITHOUT AIR CONDITIONING (09) - CHASSIS

REF

INSTRUCTION

MODELS WITHOUT AIR CONDITIONING

1шт.

1

382199A3

BRACKET

RH Cover Mount

1шт.

2

398883A2

BRACKET

LH Cover Mount

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

4

385687A1

PLATE

Cover, Used On Models W/Out A/C

1шт.

5

398744A2

BRACKET

1шт.

6

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

3шт.

7

733-1610

COTTER PIN,M1.6 x 10

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

9

733-3220

COTTER PIN,M3.2 x 20

1шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

353-414

PLUG,Dome, 1.375" Hole, Nylon

2шт.
