(09-45) - COVERS - DRIVE BELT (WITH AIR CONDITIONING)

Запчасти Case 521E (09-45) - COVERS - DRIVE BELT (WITH AIR CONDITIONING) (09) - CHASSIS

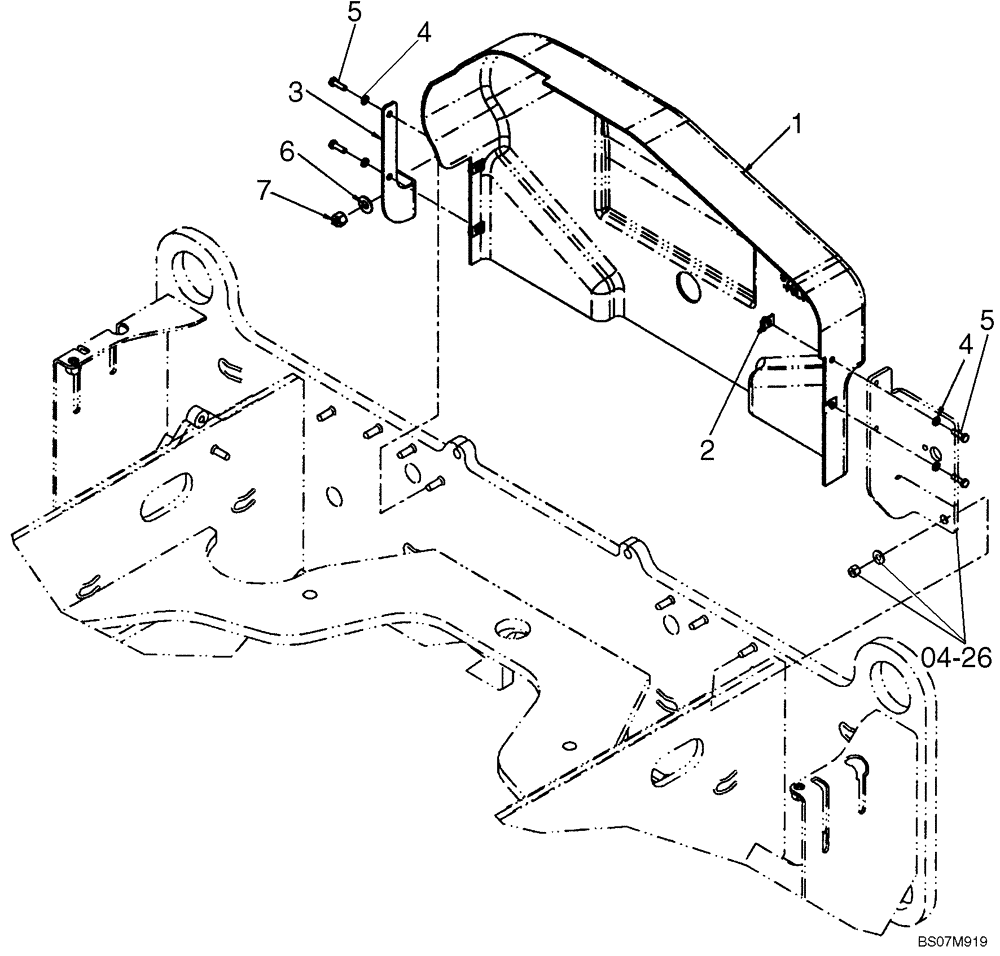

Схема запчастей Case 521E - (09-45) - COVERS - DRIVE BELT (WITH AIR CONDITIONING) (09) - CHASSIS
3
5
4
2
04-26
1
4
6
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

WITH AIR CONDITIONING

1шт.

1

87703588

GUARD

Drive Belt With A/C

1шт.

2

833-40306

SPRING NUT,M6, U

4шт.

3

87652933

BRACKET

Engine Guard; RH

1шт.

4

892-11006

LOCK WASHER,M6

4шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
